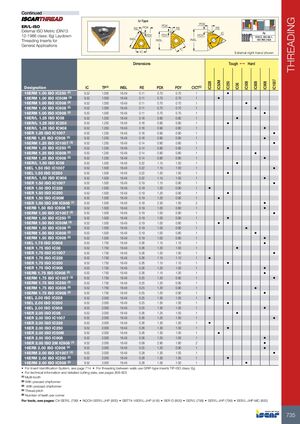

РЕЗЬБОНАРЕЗАНИЕ
ER/L-ISO (продолжение)
Резьбовые пластины для наружной метрической резьбы ISO (DIN13 12-1986 класс: 6g) с укладкой для общего применения
| Обозначение | IC | TP(4) | INSL | RE | PDX | PDY | CICT(5) |
|---|---|---|---|---|---|---|---|
| 16ERM 1.00 ISO IC250 (2) | 9.52 | 1.000 | 16.49 | 0.11 | 0.70 | 0.70 | 1 |
| 16ERM 1.00 ISO IC50M (2) | 9.52 | 1.000 | 16.49 | 0.11 | 0.70 | 0.70 | 1 |
| 16ERM 1.00 ISO IC508 (2) | 9.52 | 1.000 | 16.49 | 0.11 | 0.70 | 0.70 | 1 |
| 16ERM 1.00 ISO IC808 (2) | 9.52 | 1.000 | 16.49 | 0.11 | 0.70 | 0.70 | 1 |
| 16ERM 1.00 ISO IC908 (2) | 9.52 | 1.000 | 16.49 | 0.11 | 0.70 | 0.70 | 1 |
| 16ER/L 1.25 ISO IC08 | 9.52 | 1.250 | 16.49 | 0.16 | 0.90 | 0.80 | 1 |
| 16ER/L 1.25 ISO IC250 | 9.52 | 1.250 | 16.49 | 0.16 | 0.90 | 0.80 | 1 |
| 16ER/L 1.25 ISO IC908 | 9.52 | 1.250 | 16.49 | 0.16 | 0.90 | 0.80 | 1 |
| 16ER 1.25 ISO IC1007 | 9.52 | 1.250 | 16.49 | 0.16 | 0.90 | 0.80 | 1 |
| 16ERB 1.25 ISO IC908 (2) | 9.52 | 1.250 | 16.49 | 0.16 | 0.90 | 0.80 | 1 |
| 16ERM 1.25 ISO IC1007 (2) | 9.52 | 1.250 | 16.49 | 0.14 | 0.90 | 0.80 | 1 |
| 16ERM 1.25 ISO IC250 (2) | 9.52 | 1.250 | 16.49 | 0.14 | 0.90 | 0.80 | 1 |
| 16ERM 1.25 ISO IC808 (2) | 9.52 | 1.250 | 16.49 | 0.14 | 0.90 | 0.80 | 1 |
| 16ERM 1.25 ISO IC908 (2) | 9.52 | 1.250 | 16.49 | 0.14 | 0.90 | 0.80 | 1 |
| 16ER/L 1.50 ISO IC08 | 9.52 | 1.500 | 16.49 | 0.22 | 1.15 | 1.00 | 1 |
| 16EL 1.50 ISO IC1007 | 9.52 | 1.500 | 16.49 | 0.22 | 1.15 | 1.00 | 1 |
| 16EL 1.50 ISO IC250 | 9.52 | 1.500 | 16.49 | 0.22 | 1.20 | 1.00 | 1 |
| 16ER/L 1.50 ISO IC908 | 9.52 | 1.500 | 16.49 | 0.22 | 1.15 | 1.00 | 1 |
| 16ER 1.50 ISO IC1007 | 9.52 | 1.500 | 16.49 | 0.19 | 1.15 | 0.90 | 1 |
| 16ER 1.50 ISO IC228 | 9.52 | 1.500 | 16.49 | 0.19 | 1.20 | 0.90 | 1 |
| 16ER 1.50 ISO IC250 | 9.52 | 1.500 | 16.49 | 0.19 | 1.20 | 0.90 | 1 |
| 16ER 1.50 ISO IC50M | 9.52 | 1.500 | 16.49 | 0.19 | 1.20 | 0.90 | 1 |
| 16ER 1.50 ISO 2M IC908 (1) | 9.52 | 1.500 | 16.49 | 0.18 | 2.30 | 1.50 | 2 |
| 16ERB 1.50 ISO IC908 (2) | 9.52 | 1.500 | 16.49 | 0.19 | 1.00 | 0.80 | 1 |
| 16ERM 1.50 ISO IC1007 (2) | 9.52 | 1.500 | 16.49 | 0.19 | 1.00 | 0.80 | 1 |
| 16ERM 1.50 ISO IC250 (2) | 9.52 | 1.500 | 16.49 | 0.19 | 1.00 | 0.80 | 1 |
| 16ERM 1.50 ISO IC50M (2) | 9.52 | 1.500 | 16.49 | 0.19 | 1.00 | 0.80 | 1 |
| 16ERM 1.50 ISO IC508 (2) | 9.52 | 1.500 | 16.49 | 0.19 | 1.00 | 0.80 | 1 |
| 16ERM 1.50 ISO IC808 (2) | 9.52 | 1.500 | 16.49 | 0.19 | 1.00 | 0.80 | 1 |
| 16ERM 1.50 ISO IC908 (2) | 9.52 | 1.500 | 16.49 | 0.19 | 1.00 | 0.80 | 1 |
| 16EL 1.75 ISO IC908 | 9.52 | 1.750 | 16.49 | 0.26 | 1.15 | 1.10 | 1 |
| 16ER 1.75 ISO IC08 | 9.52 | 1.750 | 16.49 | 0.26 | 1.20 | 1.00 | 1 |
| 16ER 1.75 ISO IC1007 | 9.52 | 1.750 | 16.49 | 0.26 | 1.20 | 1.00 | 1 |
| 16ER 1.75 ISO IC228 | 9.52 | 1.750 | 16.49 | 0.26 | 1.15 | 1.10 | 1 |
| 16ER 1.75 ISO IC250 | 9.52 | 1.750 | 16.49 | 0.26 | 1.15 | 1.10 | 1 |
| 16ER 1.75 ISO IC908 | 9.52 | 1.750 | 16.49 | 0.26 | 1.20 | 1.00 | 1 |
| 16ERB 1.75 ISO IC908 (2) | 9.52 | 1.750 | 16.49 | 0.26 | 1.15 | 1.00 | 1 |
| 16ERM 1.75 ISO IC1007 (2) | 9.52 | 1.750 | 16.49 | 0.25 | 1.20 | 0.90 | 1 |
| 16ERM 1.75 ISO IC250 (2) | 9.52 | 1.750 | 16.49 | 0.25 | 1.20 | 0.90 | 1 |
| 16ERM 1.75 ISO IC808 (2) | 9.52 | 1.750 | 16.49 | 0.25 | 1.20 | 0.90 | 1 |
| 16ERM 1.75 ISO IC908 (2) | 9.52 | 1.750 | 16.49 | 0.25 | 1.20 | 0.90 | 1 |
| 16EL 2.00 ISO IC228 | 9.52 | 2.000 | 16.49 | 0.25 | 1.30 | 1.00 | 1 |
| 16EL 2.00 ISO IC250 | 9.52 | 2.000 | 16.49 | 0.25 | 1.30 | 1.00 | 1 |
| 16EL 2.00 ISO IC908 | 9.52 | 2.000 | 16.49 | 0.25 | 1.30 | 1.00 | 1 |
| 16ER 2.00 ISO IC08 | 9.52 | 2.000 | 16.49 | 0.26 | 1.25 | 1.00 | 1 |
| 16ER 2.00 ISO IC1007 | 9.52 | 2.000 | 16.49 | 0.26 | 1.25 | 1.00 | 1 |
| 16ER 2.00 ISO IC228 | 9.52 | 2.000 | 16.49 | 0.26 | 1.30 | 1.00 | 1 |
| 16ER 2.00 ISO IC250 | 9.52 | 2.000 | 16.49 | 0.26 | 1.30 | 1.00 | 1 |
| 16ER 2.00 ISO IC50M | 9.52 | 2.000 | 16.49 | 0.26 | 1.30 | 1.00 | 1 |
| 16ER 2.00 ISO IC908 | 9.52 | 2.000 | 16.49 | 0.26 | 1.25 | 1.00 | 1 |
| 16ER 2.00 ISO 2M IC908 (1) | 9.52 | 2.000 | 16.49 | 0.09 | 2.90 | 1.80 | 2 |
| 16ERB 2.00 ISO IC908 (2) | 9.52 | 2.000 | 16.49 | 0.25 | 1.20 | 0.90 | 1 |
| 16ERM 2.00 ISO IC1007 (2) | 9.52 | 2.000 | 16.49 | 0.28 | 1.30 | 1.00 | 1 |
| 16ERM 2.00 ISO IC250 (2) | 9.52 | 2.000 | 16.49 | 0.28 | 1.30 | 1.00 | 1 |
| 16ERM 2.00 ISO IC508 (2) | 9.52 | 2.000 | 16.49 | 0.28 | 1.30 | 1.00 | 1 |
Система идентификации пластин см. на странице 714. Для нарезания резьбы в стеснённых условиях используйте пластины типа GRIP. Класс TIP-ISO: 6g
Техническая информация и данные резания см. на страницах 809-825
(1) Многозубая
(2) С прессованной лункообразователем
(3) С прессованной лункообразователем
(4) Шаг резьбы
(5) Количество зубьев в углу
Инструменты см. на страницах: C#-SER/L (799) • NQCH-SER/L-JHP (800) • SBTT#-16ER/L-JHP (418) • SER-D (800) • SER/L (798) • SER/L-JHP (799) • SER/L-JHP-MC (800)
