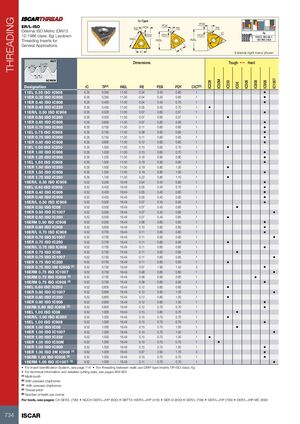

РЕЗЬБОНАРЕЗАНИЕ
ER/L-ISO
Резьбовые пластины для наружной метрической резьбы ISO (DIN13 12-1986 класс: 6g) с укладкой для общего применения
Показана наружная резьба правого прохода
| Обозначение | IC | TP(4) | INSL | RE | PDX | PDY | CICT(5) |
|---|---|---|---|---|---|---|---|
| 11EL 0.35 ISO IC908 | 6.35 | 0.350 | 11.00 | 0.04 | 0.40 | 0.80 | 1 |
| 11ER 0.35 ISO IC908 | 6.35 | 0.350 | 11.00 | 0.04 | 0.40 | 0.60 | 1 |
| 11ER 0.40 ISO IC908 | 6.35 | 0.400 | 11.00 | 0.04 | 0.40 | 0.70 | 1 |
| 11ER 0.45 ISO IC228 | 6.35 | 0.450 | 11.00 | 0.05 | 0.40 | 0.70 | 1 |
| 11ER/L 0.50 ISO IC908 | 6.35 | 0.500 | 11.00 | 0.07 | 0.60 | 0.57 | 1 |
| 11ER 0.50 ISO IC250 | 6.35 | 0.500 | 11.00 | 0.07 | 0.60 | 0.57 | 1 |
| 11ER 0.60 ISO IC908 | 6.35 | 0.600 | 11.00 | 0.07 | 0.60 | 0.60 | 1 |
| 11ER 0.70 ISO IC908 | 6.35 | 0.700 | 11.00 | 0.11 | 0.60 | 0.60 | 1 |
| 11EL 0.75 ISO IC908 | 6.35 | 0.750 | 11.00 | 0.08 | 0.60 | 0.60 | 1 |
| 11ER 0.75 ISO IC908 | 6.35 | 0.750 | 11.00 | 0.11 | 0.60 | 0.60 | 1 |
| 11ER 0.80 ISO IC908 | 6.35 | 0.800 | 11.00 | 0.12 | 0.60 | 0.60 | 1 |
| 11EL 1.00 ISO IC250 | 6.35 | 1.000 | 11.00 | 0.15 | 0.65 | 0.70 | 1 |
| 11ER 1.00 ISO IC908 | 6.35 | 1.000 | 11.00 | 0.15 | 0.65 | 0.70 | 1 |
| 11ER 1.25 ISO IC908 | 6.35 | 1.250 | 11.00 | 0.16 | 0.90 | 0.80 | 1 |
| 11EL 1.50 ISO IC908 | 6.35 | 1.500 | 11.00 | 0.19 | 0.90 | 0.80 | 1 |
| 11ER 1.50 ISO IC250 | 6.35 | 1.500 | 11.00 | 0.19 | 0.80 | 1.00 | 1 |
| 11ER 1.50 ISO IC908 | 6.35 | 1.500 | 11.00 | 0.19 | 0.80 | 1.00 | 1 |
| 11ER 1.75 ISO IC250 | 6.35 | 1.750 | 11.00 | 0.22 | 0.80 | 1.10 | 1 |
| 16ER/L 0.35 ISO IC908 | 9.52 | 0.350 | 16.49 | 0.04 | 0.40 | 0.60 | 1 |
| 16EL 0.40 ISO IC908 | 9.52 | 0.400 | 16.49 | 0.05 | 0.40 | 0.70 | 1 |
| 16ER 0.40 ISO IC908 | 9.52 | 0.400 | 16.49 | 0.05 | 0.40 | 0.60 | 1 |
| 16ER 0.45 ISO IC908 | 9.52 | 0.450 | 16.49 | 0.05 | 0.40 | 0.60 | 1 |
| 16ER/L 0.50 ISO IC908 | 9.52 | 0.500 | 16.49 | 0.07 | 0.45 | 0.60 | 1 |
| 16ER 0.50 ISO IC08 | 9.52 | 0.500 | 16.49 | 0.07 | 0.45 | 0.60 | 1 |
| 16ER 0.50 ISO IC1007 | 9.52 | 0.500 | 16.49 | 0.07 | 0.45 | 0.60 | 1 |
| 16ER 0.50 ISO IC250 | 9.52 | 0.500 | 16.49 | 0.07 | 0.45 | 0.60 | 1 |
| 16ERM 0.50 ISO IC908 | 9.52 | 0.500 | 16.49 | 0.06 | 0.60 | 0.60 | 1 |
| 16ER 0.60 ISO IC908 | 9.52 | 0.600 | 16.49 | 0.10 | 0.60 | 0.60 | 1 |
| 16ER/L 0.70 ISO IC908 | 9.52 | 0.700 | 16.49 | 0.11 | 0.60 | 0.60 | 1 |
| 16ER 0.70 ISO IC1007 | 9.52 | 0.700 | 16.49 | 0.11 | 0.60 | 0.60 | 1 |
| 16ER 0.70 ISO IC250 | 9.52 | 0.700 | 16.49 | 0.11 | 0.60 | 0.60 | 1 |
| 16ER/L 0.75 ISO IC908 | 9.52 | 0.750 | 16.49 | 0.11 | 0.60 | 0.60 | 1 |
| 16ER 0.75 ISO IC08 | 9.52 | 0.750 | 16.49 | 0.11 | 0.60 | 0.60 | 1 |
| 16ER 0.75 ISO IC1007 | 9.52 | 0.750 | 16.49 | 0.11 | 0.60 | 0.60 | 1 |
| 16ER 0.75 ISO IC250 | 9.52 | 0.750 | 16.49 | 0.11 | 0.60 | 0.60 | 1 |
| 16ER 0.75 ISO 3M IC908 (1) | 9.52 | 0.750 | 16.49 | 0.07 | 1.90 | 1.40 | 3 |
| 16ERM 0.75 ISO IC1007 | 9.52 | 0.750 | 16.49 | 0.08 | 0.60 | 0.60 | 1 |
| 16ERM 0.75 ISO IC808 (2) | 9.52 | 0.750 | 16.49 | 0.08 | 0.60 | 0.60 | 1 |
| 16ERM 0.75 ISO IC908 (2) | 9.52 | 0.750 | 16.49 | 0.08 | 0.60 | 0.60 | 1 |
| 16EL 0.80 ISO IC250 | 9.52 | 0.800 | 16.49 | 0.12 | 0.60 | 0.60 | 1 |
| 16ER 0.80 ISO IC1007 | 9.52 | 0.800 | 16.49 | 0.12 | 0.60 | 1.00 | 1 |
| 16ER 0.80 ISO IC250 | 9.52 | 0.800 | 16.49 | 0.12 | 0.60 | 1.00 | 1 |
| 16ER 0.80 ISO IC908 | 9.52 | 0.800 | 16.49 | 0.12 | 0.60 | 1.00 | 1 |
| 16ERB 0.80 ISO IC908 (2) | 9.52 | 0.800 | 16.49 | 0.12 | 0.70 | 0.70 | 1 |
| 16EL 1.00 ISO IC08 | 9.52 | 1.000 | 16.49 | 0.15 | 0.80 | 0.70 | 1 |
| 16ER/L 1.00 ISO IC250 | 9.52 | 1.000 | 16.49 | 0.15 | 0.75 | 0.70 | 1 |
| 16EL 1.00 ISO IC908 | 9.52 | 1.000 | 16.49 | 0.15 | 0.75 | 0.70 | 1 |
| 16ER 1.00 ISO IC08 | 9.52 | 1.000 | 16.49 | 0.15 | 0.70 | 1.00 | 1 |
| 16ER 1.00 ISO IC1007 | 9.52 | 1.000 | 16.49 | 0.15 | 0.70 | 1.00 | 1 |
| 16ER 1.00 ISO IC228 | 9.52 | 1.000 | 16.49 | 0.15 | 0.75 | 1.00 | 1 |
| 16ER 1.00 ISO IC50M | 9.52 | 1.000 | 16.49 | 0.15 | 0.75 | 0.70 | 1 |
| 16ER 1.00 ISO IC908 | 9.52 | 1.000 | 16.49 | 0.15 | 0.70 | 1.00 | 1 |
| 16ER 1.00 ISO 3M IC908 (1) | 9.52 | 1.000 | 16.49 | 0.07 | 2.50 | 1.70 | 3 |
| 16ERB 1.00 ISO IC908 (2) | 9.52 | 1.000 | 16.49 | 0.15 | 0.70 | 0.70 | 1 |
| 16ERM 1.00 ISO IC1007 (2) | 9.52 | 1.000 | 16.49 | 0.11 | 0.70 | 0.70 | 1 |
Система идентификации пластин см. на странице 714. Для нарезания резьбы в стеснённых условиях используйте пластины типа GRIP. Класс TIP-ISO: 6g
Техническая информация и данные резания см. на страницах 809-825
(1) Многозубая
(2) С прессованной лункообразователем
(3) С прессованной лункообразователем
(4) Шаг резьбы
(5) Количество зубьев в углу
Инструменты см. на страницах: C#-SER/L (799) • NQCH-SER/L-JHP (800) • SBTT#-16ER/L-JHP (418) • SER-D (800) • SER/L (798) • SER/L-JHP (799) • SER/L-JHP-MC (800)
