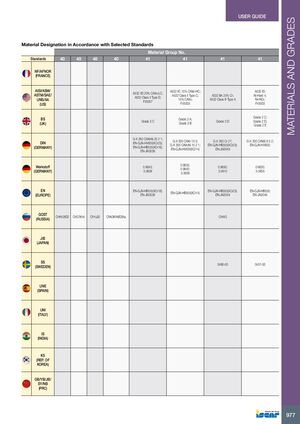

РУКОВОДСТВО ПОЛЬЗОВАТЕЛЯ
Материалы и марки
Обозначение материалов в соответствии с выбранными стандартами
| Стандарт | Группа материала № 40-41 | |||||||
|---|---|---|---|---|---|---|---|---|
| NF/AFNOR (ФРАНЦИЯ) | ||||||||
| AISI/ASM/ASTM/SAE/UNS/AA (США) | A532 IID 20% CrMo-LC; F45007 | A532 IIC 15% CrMo-HC; A532 Class II Type C; A532 Class II Type D | A532 lllA 25% Cr; A532 Class III Type A; F45005 | A532 ID; Ni-Hard 4; Ni-HiCr; F45003 | ||||
| BS (ВЕЛИКОБРИТАНИЯ) | Grade 3 C | Grade 3 A; Grade 3 B | Grade 3 D | Grade 2 C; Grade 2 D; Grade 2 E | ||||
| DIN (ГЕРМАНИЯ) | G-X 260 CrMoNi 20 2 1; EN-GJN-HV600(XCr23); EN-GJN-HB555(XCr18); EN-JN3039 | G-X 300 CrMo 15 3; G-X 300 CrMoNi 15 2 1; EN-GJN-HV600(XCr14); EN-GJN-HB555(XCr18) | G-X 260 Cr 27; EN-GJN-HB555(XCr23); EN-JN3049 | G-X 300 CrNiSi 9 5 2; EN-GJN-HV600; EN-JN3049 | ||||
| Werkstoff (ГЕРМАНИЯ) | 0.9645; 5.5609 | 0.9635; 0.9640; 5.5608 | 0.9650; 5.5610 | 0.9630; 5.5605 | ||||
| EN (ЕВРОПА) | EN-GJN-HB555(XCr18); EN-JN3039 | EN-GJN-HB555(XCr14); EN-GJN-HB555(XCr23); EN-JN3049 | EN-GJN-HB555; EN-JN2049 | |||||
| GOST (РОССИЯ) | ChKh28D2; ChG7Kh4; ChYu30; ChN3KhMDSha | ChWG | ||||||
| JIS (ЯПОНИЯ) | ||||||||
| SS (ШВЕЦИЯ) | 0466-00 | 0457-00 | ||||||
| UNE (ИСПАНИЯ) | ||||||||
| UNI (ИТАЛИЯ) | ||||||||
| IS (ИНДИЯ) | ||||||||
| KS (РЕСП. КОРЕЯ) | ||||||||
| GB/YB/JB/SY/NB (КНР) | ||||||||
