РУКОВОДСТВО ПОЛЬЗОВАТЕЛЯ
Материалы и марки

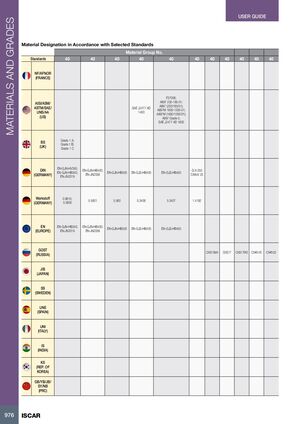

Обозначение материалов в соответствии с выбранными стандартами
| Стандарт | Группа материала № 40 | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| NF/AFNOR (ФРАНЦИЯ) | ||||||||||
| AISI/ASM/ASTM/SAE/UNS/AA (США) | SAE J2477 AD 1400 | F37006; A897 230-185-01; A897 (230/185/01); A897M 1600-1300-01; A897M (1600/1300/01); A897 Grade 5; SAE J2477 AD 1600 | ||||||||
| BS (ВЕЛИКОБРИТАНИЯ) | Grade 1 A; Grade 1 B; Grade 1 C | |||||||||
| DIN (ГЕРМАНИЯ) | EN-GJN-HV350; EN-GJN-HB340; EN-JN2019 | EN-GJN-HB400; EN-JN2059 | EN-GJN-HB500 | EN-GJS-HB400 | EN-GJS-HB450; G-X 250 CrMoV 25 | |||||
| Werkstoff (ГЕРМАНИЯ) | 0.9610; 5.5600 | 5.5601 | 5.560 | 5.3406 | 5.3407; 1.4192 | |||||
| EN (ЕВРОПА) | EN-GJN-HB340; EN-JN2019 | EN-GJN-HB400; EN-JN2059 | EN-GJN-HB500 | EN-GJS-HB400 | EN-GJS-HB450 | |||||
| GOST (РОССИЯ) | ChS15M4; ChS17; ChS17M3; ChKh16; ChKh22 | |||||||||
| JIS (ЯПОНИЯ) | ||||||||||
| SS (ШВЕЦИЯ) | ||||||||||
| UNE (ИСПАНИЯ) | ||||||||||
| UNI (ИТАЛИЯ) | ||||||||||
| IS (ИНДИЯ) | ||||||||||
| KS (РЕСП. КОРЕЯ) | ||||||||||
| GB/YB/JB/SY/NB (КНР) | ||||||||||
