РУКОВОДСТВО ПОЛЬЗОВАТЕЛЯ
Материалы и марки

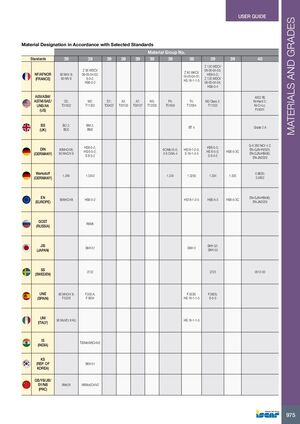

Обозначение материалов в соответствии с выбранными стандартами
| Стандарт | Группа материала № 39-40 | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NF/AFNOR (ФРАНЦИЯ) | 90 MnV 8; 90 MV 8 | Z 85 WDCV 06-05-04-02; 6-5-2; HS6-5-2 | Z 80 WKCV 19-05-04-01; HS 18-1-1-5 | Z 120 WDCV 06-05-04-03; HS6-5-3; HS6-5-4 | Z 120 WDCV 06-05-04-04 | |||||||
| AISI/ASM/ASTM/SAE/UNS/AA (США) | O2; T31502 | M2; T11302 | D7; T30407; A3; T30103; A7; T30107; W5; T72305 | P4; T51604 | T4; T12004; M3 Class 2; T11323 | A532 IB; Ni-Hard 2; Ni-Cr-Lc; F45001 | ||||||
| BS (ВЕЛИКОБРИТАНИЯ) | BO 2; BO2 | BM 2; BM2 | BT 4 | Grade 2 A | ||||||||
| DIN (ГЕРМАНИЯ) | 90MnCrV8; 90 MnCrV 8 | HS6-5-2; HS 6-5-2; S 6-5-2 | 6CrMo15-5; X 6 CrMo 4 | HS18-1-2-5; S 18-1-2-5 | HS6-5-3; HS 6-5-3; HS6-5-3C | G-X 260 NiCr 4 2; EN-GJN-HV520; EN-GJN-HB480; EN-JN2029 | ||||||
| Werkstoff (ГЕРМАНИЯ) | 1.284 | 1.3343 | 1.234 | 1.3255 | 1.334; 1.335 | 0.9620; 5.5602 | ||||||
| EN (ЕВРОПА) | 90MnCrV8 | HS6-5-2 | HS18-1-2-5 | HS6-5-3; HS6-5-3C | EN-GJN-HB480; EN-JN2029 | |||||||
| GOST (РОССИЯ) | R6M5 | |||||||||||
| JIS (ЯПОНИЯ) | SKH 51 | SKH 52; SKH 3; SKH 53 | ||||||||||
| SS (ШВЕЦИЯ) | 2722 | 2725 | 0512-00 | |||||||||
| UNE (ИСПАНИЯ) | 90 MnCrV 8; F.5229 | F.550.A; F.5604 | F.5530; HS 18-1-1-5 | F.5605; 6-5-3 | ||||||||
| UNI (ИТАЛИЯ) | 90 MoVCr 8 KU | HS 18-1-1-5 | ||||||||||
| IS (ИНДИЯ) | T83MoW6Cr4V2 | |||||||||||
| KS (РЕСП. КОРЕЯ) | SKH 51 | |||||||||||
| GB/YB/JB/SY/NB (КНР) | 9Mn2V | W6Mo5Cr4V2 | ||||||||||
