Материалы и марки

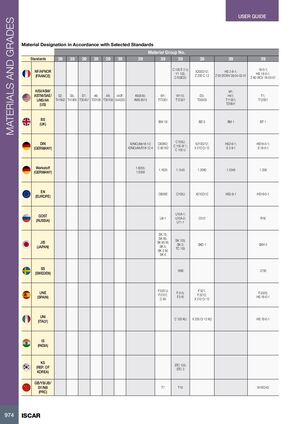

Обозначение материалов в соответствии с выбранными стандартами
| Стандарты | Группа материалов № 39 | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NF/AFNOR (ФРАНЦИЯ) | C 105 E 2 U; Y1 105; C105E2U | X200Cr12; Z 200 C 12 | HS 2-8-1; Z 85 DCWV 08-04-02-01 | 18-0-1; HS 18-0-1; Z 80 WCV 18-04-01 | |||||||||
| AISI/ASM/ASTM/САЕ/UNS/АА (США) | S2; T41902 | S5; T41905 | D7; T30407 | A6; T30106 | A8; T30108 | 440F; S44020 | K93540; AMS 6515 | W1; T72301 | W110; T72301 | D3; T30403 | H41; T11301; T20841 | T1; T12001 | |
| BS (ВЕЛИКОБРИТАНИЯ) | BW 18 | BD 3 | BM 1 | BT 1 | |||||||||
| DIN (ГЕРМАНИЯ) | X2NiCoMo18-12; X2NiCoMoTi18-12-4 | C105U; C 105 W 1; C 105 U | C80W2; C 80 W2 | X210Cr12; X 210 Cr 12 | HS2-9-1; S 2-9-1 | HS18-0-1; S 18-0-1 | |||||||
| Werkstoff (ГЕРМАНИЯ) | 1.6355; 1.6356 | 1.1625 | 1.1545 | 1.2080 | 1.3346 | 1.336 | |||||||
| EN (ЕВРОПА) | C80W2 | C105U | X210Cr12 | HS2-9-1 | HS18-0-1 | ||||||||
| ГОСТ (РОССИЯ) | U8-1 | U10A-1; U10A-2; U11-1 | Ch12 | R18 | |||||||||
| JIS (ЯПОНИЯ) | SK 75; SK 85; SK 85 M; SK 5; SK 5 M; SK 6 | SK 105; SK 3; TC 105 | SKD 1 | SKH 2 | |||||||||
| SS (ШВЕЦИЯ) | 1880 | 2750 | |||||||||||
| UNE (ИСПАНИЯ) | F.520.U; F.5107; C 80 | F.515; F.516 | F.521; F.5212; X 210 Cr 12 | F.5520; HS 18-0-1 | |||||||||
| UNI (ИТАЛИЯ) | C 100 KU | X 205 Cr 12 KU | HS 18-0-1 | ||||||||||
| IS (ИНДИЯ) | |||||||||||||
| KS (РЕС. КОРЕЯ) | STC 105; STC 3 | ||||||||||||
| GB/YB/JB/SY/NB (КНР) | T7 | T10 | W18Cr4V | ||||||||||
