Материалы и марки

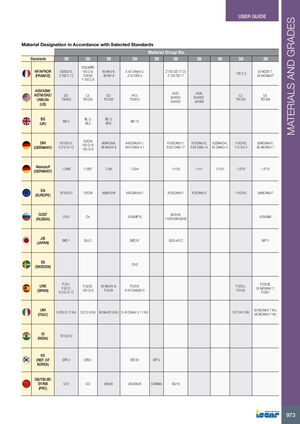

Обозначение материалов в соответствии с выбранными стандартами
| Стандарты | Группа материалов № 39 | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| NF/AFNOR (ФРАНЦИЯ) | X200Cr12; Z 200 C 12 | 100Cr6RR; 100 C 6; 100Cr6; Y 100 C 6 | 90 MnV 8; 90 MV 8 | X 40 CrMoV 5; Z 40 CDV 5 | Z 100 CD 17 CI; Z 100 CD 17 | 100 C 3 | 55 NCDV 7; 55 NiCrMoV7 | |||
| AISI/ASM/ASTM/САЕ/UNS/АА (США) | D3; T30403 | L3; T61203 | O2; T31502 | H13; T20813 | 440C; S44004; 440A; S44002; S44025 | J91606 | L2; T61202 | L6; T61206 | ||
| BS (ВЕЛИКОБРИТАНИЯ) | BD 3 | BL 3; BL3 | BO 2; BO2 | BH 13 | ||||||
| DIN (ГЕРМАНИЯ) | X210Cr12; X 210 Cr 12 | 102Cr6; 102 Cr 6; 100 Cr 6 | 90MnCrV8; 90 MnCrV 8 | X40CrMoV5-1; X40 CrMoV 5 1 | X105CrMo17; X105 CrMo 17 | X70CrMo15; X 65 CrMo 14 | 62SiMnCr4; 62 SiMnCr 4 | 115CrV3; 115 CrV 3 | 55NiCrMoV7; 56 NiCrMoV 7 | |
| Werkstoff (ГЕРМАНИЯ) | 1.2080 | 1.2067 | 1.284 | 1.2344 | 1.4125 | 1.411 | 1.2101 | 1.2210 | 1.2714 | |
| EN (ЕВРОПА) | X210Cr12 | 102Cr6 | 90MnCrV8 | X40CrMoV5-1 | X105CrMo17 | X70CrMo15 | 115CrV3 | 55NiCrMoV7 | ||
| ГОСТ (РОССИЯ) | Ch12 | Ch | 4Ch5MF1S | 95Ch18; 110Ch18M-SchD | 5ChGNM | |||||
| JIS (ЯПОНИЯ) | SKD 1 | SUJ 2 | SKD 61 | SUS 440 C | SKT 4 | |||||
| SS (ШВЕЦИЯ) | 2242 | |||||||||
| UNE (ИСПАНИЯ) | F.521; F.5212; X 210 Cr 12 | F.5230; 100 Cr 6 | 90 MnCrV 8; F.5229 | F.5318; X 40 CrMoSiV 5 | F.520.L; F.5125 | F.520.B; 55 NiCrMoV 7; F.5307 | ||||
| UNI (ИТАЛИЯ) | X 205 Cr 12 KU | 102 Cr 6 KU | 90 MoVCr 8 KU | X 40 CrMoV 5 1 1 KU | 107 CrV 3 KU | 55 NiCrMoV 7 KU; 56 NiCrMoV 7 KU | ||||
| IS (ИНДИЯ) | T215Cr12 | |||||||||
| KS (РЕС. КОРЕЯ) | STR 3 | STB 2 | STD 61 | STF 4 | ||||||
| GB/YB/JB/SY/NB (КНР) | Cr12 | Cr2 | 9Mn2V | 40CrMoV5 | 5CrNiMo | 9Cr18 | ||||
