Материалы и марки

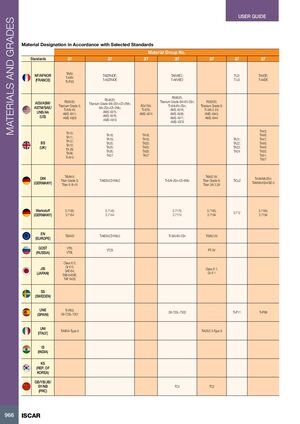

Обозначение материалов в соответствии с выбранными стандартами
| Стандарты | Группа материалов № 37 | ||||||
|---|---|---|---|---|---|---|---|
| NF/AFNOR (ФРАНЦИЯ) | TA6V; T-A6V; Ti-P.63 | TA6ZR4DE; T-A6ZR4DE | TA6V6E2; T-A6V6E2 | TU2 | TA4DE | ||
| AISI/ASM/ASTM/САЕ/UNS/АА (США) | Титановый сплав 5; Ti-6Al-4V; AMS 4911; AMS 4928 | Титановый сплав 6Al-2Sn-4Zr-2Mo; AMS 4975; AMS 4976; AMS 4919 | Титановый сплав 6Al-6V-2Sn; AMS 4936; AMS 4971; AMS 4978 | Титановый сплав 9; Ti-3Al-2.5V; AMS 4943; AMS 4944 | R56320 | R54790; Ti-679; AMS 4974 | R54620; R56400 |
| BS (ВЕЛИКОБРИТАНИЯ) | TA10; TA11; TA12; TA13; TA56; Ti-Al-V | TA18; TA19; TA20; TA 28; TA25; TA26; TA27 | TA21; TA22; TA23; TA24 | TA45; TA46; TA47; TA48; TA49; TA50; TA51; TA57 | |||
| DIN (ГЕРМАНИЯ) | Ti6Al4V; Titan Grade 5; Titan 6 Al 4V | TiAl6Sn2Zr4Mo2 | Ti6Al2.5V; Titan Grade 9 | Ti-6Al-2Sn-4Zr-6Mo; TiCu2; TiAl4Mo4Sn4Si0.5 | |||
| Werkstoff (ГЕРМАНИЯ) | 3.7165; 3.7164 | 3.7145; 3.7144 | 3.7175; 3.7174 | 3.7195; 3.7194 | 3.712; 3.7185; 3.7184 | ||
| EN (ЕВРОПА) | Ti6Al4V | TiAl6Sn2Zr4Mo2 | Ti-6Al-6V-2Sn | Ti6Al2.5V | |||
| ГОСТ (РОССИЯ) | VT6; VT6L | VT25 | PT-3V | ||||
| JIS (ЯПОНИЯ) | Class 6 0; Gr 6 0; SAT-64; TAB 6400E; TAF 6400 | Class 6 1; Gr 6 1 | |||||
| SS (ШВЕЦИЯ) | |||||||
| UNE (ИСПАНИЯ) | Ti-P63; 38-723L-7301 | 38-725L-7303 | Ti-P11; Ti-P68 | ||||
| UNI (ИТАЛИЯ) | TiAl6V4-Type 5 | TiAl3V2.5-Type 9 | |||||
| IS (ИНДИЯ) | |||||||
| KS (РЕС. КОРЕЯ) | |||||||
| GB/YB/JB/SY/NB (КНР) | TC4; TC2 | ||||||
