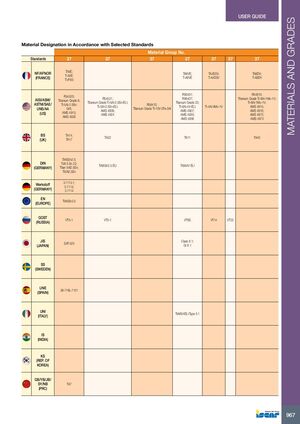

Материалы и марки
Обозначение материалов в соответствии с выбранными стандартами
| Стандарты | Группа материалов № 37 | ||||||
|---|---|---|---|---|---|---|---|
| NF/AFNOR (ФРАНЦИЯ) | TA5E; T-A5E; Ti-P.65 | TA6VE; T-A6VE | TA4D3V; T-A4D3V | TA8DV; T-A8DV | |||
| AISI/ASM/ASTM/САЕ/UNS/АА (США) | Титановый сплав 6; Ti-5Al-2.5Sn; Gr6; AMS 4910; AMS 4926 | R54520; R54521; Титановый сплав Ti-5Al-2.5Sn-ELI; Ti-5Al-2.5Sn-ELI; AMS 4909; AMS 4924 | R56401; R56407; Титановый сплав 23; Ti-6Al-4V-ELI; AMS 4907; AMS 4930; AMS 4956 | R56410; Титановый сплав Ti-10V-2Fe-3Al; Ti-4Al-3Mo-1V; AMS 4917; AMS 4972; AMS 4973 | R54810; Титановый сплав Ti-8Al-1Mo-1V; Ti-8Al-1Mo-1V; AMS 4915; AMS 4916 | ||
| BS (ВЕЛИКОБРИТАНИЯ) | TA14; TA17 | TA32 | TA11 | TA40 | |||
| DIN (ГЕРМАНИЯ) | TiAl5Sn2.5; TiAl 5 Sn 22; Titan 5Al2.5Sn; Ti5Al2,5Sn | TiAl5Sn2.5 ELI | Ti6Al4V ELI | ||||
| Werkstoff (ГЕРМАНИЯ) | 3.7115.1; 3.7115; 3.7114 | ||||||
| EN (ЕВРОПА) | TiAl5Sn2.5 | ||||||
| ГОСТ (РОССИЯ) | VT5-1 | VT5-1 | VT6S | VT14 | VT22 | ||
| JIS (ЯПОНИЯ) | SAT-525 | Class 6 1; Gr 6 1 | |||||
| SS (ШВЕЦИЯ) | |||||||
| UNE (ИСПАНИЯ) | 38-716L-7101 | ||||||
| UNI (ИТАЛИЯ) | TiAl6V4ELI-Type 5.1 | ||||||
| IS (ИНДИЯ) | |||||||
| KS (РЕС. КОРЕЯ) | |||||||
| GB/YB/JB/SY/NB (КНР) | TA7 | ||||||
