Материалы и сорта

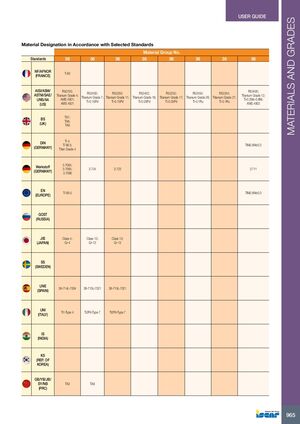

Обозначение материалов в соответствии с выбранными стандартами
Номер группы материалов: 36
| Стандарт | Материал 1 | Материал 2 | Материал 3 | Материал 4 | Материал 5 | Материал 6 | Материал 7 | Материал 8 |
|---|---|---|---|---|---|---|---|---|
| NF/AFNOR (Франция) | T-60 | |||||||
| AISI/ASM/ASTM/SAE/UNS/AA (США) | R50700; Titanium Grade 4; AMS 4901; AMS 4921; TA7; TA8; TA9 | R52400; Titanium Grade 7; Ti-0.15Pd | R52250; Titanium Grade 11; Ti-0.15Pd | R52402; Titanium Grade 16; Ti-0.05Pd | R52252; Titanium Grade 17; Ti-0.05Pd | R52404; Titanium Grade 26; Ti-0.1Ru | R52254; Titanium Grade 27; Ti-0.1Ru | R53400; Titanium Grade 12; Ti-0.3Mo-0.8Ni; AMS 4902; Ti 4; Ti 99.5; Titan Grade 4; TiNi0.8Mo0.3 |
| BS (Великобритания) | ||||||||
| DIN (Германия) | Ti 4; Ti 99.5; Titan Grade 4 | TiNi0.8Mo0.3 | ||||||
| Werkstoff (Германия) | 3.7064; 3.7065; 3.7066 | 3.724 | 3.723 | 3.711 | ||||
| EN (Европа) | Ti 99.5 | TiNi0.8Mo0.3 | ||||||
| GOST (Россия) | ||||||||
| JIS (Япония) | Class 4; Gr-4 | Class 13; Gr-13 | Class 13; Gr-13 | |||||
| SS (Швеция) | ||||||||
| UNE (Испания) | 38-714L-7004 | 38-715L-7021 | 38-715L-7021 | |||||
| UNI (Италия) | Ti1-Type 4 | Ti2Pd-Type 7 | Ti2Pd-Type 7 | |||||
| IS (Индия) | ||||||||
| KS (Республика Корея) | ||||||||
| GB/YB/JB/SY/NB (КНР) | TA3 | TA9 |
