РУКОВОДСТВО ПОЛЬЗОВАТЕЛЯ
МАТЕРИАЛЫ И СОРТА

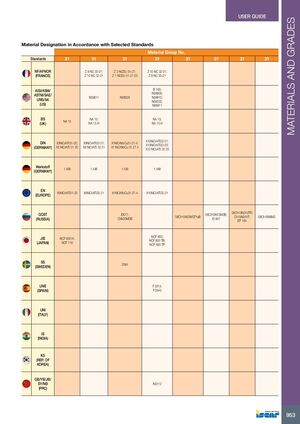

Обозначение материалов в соответствии с выбранными стандартами
Номер группы материалов 31
| Стандарты | Обозначения материалов |
|---|---|
| NF/AFNOR (ФРАНЦИЯ) | Z 8 NC 33-21; Z 10 NC 32-21, Z 2 NCDU 31-27; Z 1 NCDU 31-27-03, Z 10 NC 32-21; Z 8 NC 33-21 |
| AISI/ASM/ASTM/SAE/UNS/AA (США) | N08811, N08028, B 163; N08800; N08810; N08332; N08811 |
| BS (ВЕЛИКОБРИТАНИЯ) | NA 15, NA 15; NA 15 H, NA 15; NA 15 H |
| DIN (ГЕРМАНИЯ) | X5NiCrAITi31-20; X5 NiCrAITi 31 20, X8NiCrAlTi32-21; X8 NiCrAlTi 32 21, X10NiCrAlTi32-21; X10NiCrAlTi32-20; X10 NiCrAlTi 32 20, X1NiCrMoCu31-27-4; X1 NiCrMoCu 31 27 4 |
| Werkstoff (ГЕРМАНИЯ) | 1.496, 1.496, 1.456, 1.488 |
| EN (ЕВРОПА) | X5NiCrAITi31-20, X8NiCrAlTi32-21, X1NiCrMoCu31-27-4, X10NiCrAlTi32-21 |
| GOST (РОССИЯ) | EK77; ChN30MDB, 08Ch15N24VTR; Ch15N24VT; 08Ch16N9M2, 08Ch15N25M3TYuB; 06Ch16N15M3B; EI 847; EP 164 |
| JIS (ЯПОНИЯ) | NCF 800 H; NCF 718, NCF 800; NCF 800 TB; NCF 800 TP |
| SS (ШВЕЦИЯ) | 2584 |
| UNE (ИСПАНИЯ) | F.3314; F.3545 |
| UNI (ИТАЛИЯ) | |
| IS (ИНДИЯ) | |
| KS (РЕСПУБЛИКА КОРЕЯ) | |
| GB/YB/JB/SY/NB (КНР) | NS112 |
