РУКОВОДСТВО ПОЛЬЗОВАТЕЛЯ
МАТЕРИАЛЫ И СОРТА

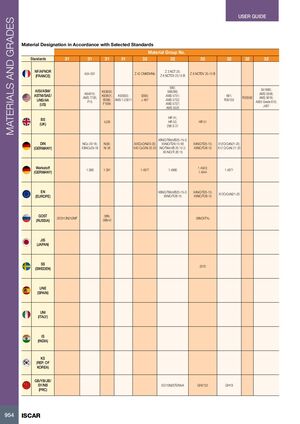

Обозначение материалов в соответствии с выбранными стандартами
Номер группы материалов 31, 32
| Стандарты | Обозначения материалов |
|---|---|
| NF/AFNOR (ФРАНЦИЯ) | A54-301, Z 42 CNKDWNb, Z 3 NCT 25; Z 6 NCTDV 25-15 B; Z 6 NCTDV 25.15 B |
| AISI/ASM/ASTM/SAE/UNS/AA (США) | K93600; K94610; AMS 7726; F15, K93601; B388; AMS 1-23011; F1684, S590; J 467, 660; S66286; AMS 5731; AMS 5732; AMS 5737; AMS 5525, S41880; AMS 5508; AMS 5616; A565 Grade 615; J467, R30556, R30155 |
| BS (ВЕЛИКОБРИТАНИЯ) | 4J36, HR 51; HR 52; 286 S 31, HR 51 |
| DIN (ГЕРМАНИЯ) | NiCo 29 18; X3NiCo29-18, Ni36; Ni 36, X40CoCrNi20-20; X40 CoCrNi 20 20, X6NiCrTiMoVB25-15-2; X5NiCrTi26-15 X6 NiCrTiMoVB 25 15 2; X5 NiCrTi 26 15, X4NiCrTi25-15; X5NiCrTi26-15, X12CrCoNi21-20; X12 CrCoNi 21 20 |
| Werkstoff (ГЕРМАНИЯ) | 1.398, 1.391, 1.4977, 1.4980; 1.4943; 1.4944, 1.4971 |
| EN (ЕВРОПА) | X6NiCrTiMoVB25-15-2; X5NiCrTi26-15, X4NiCrTi25-15; X5NiCrTi26-15, X12CrCoNi21-20 |
| GOST (РОССИЯ) | 20Ch12N2V2MF, 36N; 36N-VI, 36NChTYu |
| JIS (ЯПОНИЯ) | |
| SS (ШВЕЦИЯ) | 2570 |
| UNE (ИСПАНИЯ) | |
| UNI (ИТАЛИЯ) | |
| IS (ИНДИЯ) | |
| KS (РЕСПУБЛИКА КОРЕЯ) | |
| GB/YB/JB/SY/NB (КНР) | 0Cr15Ni25Ti2MoA, GH2132, GH19 |
