РУКОВОДСТВО ПОЛЬЗОВАТЕЛЯ
МАТЕРИАЛЫ И СОРТА

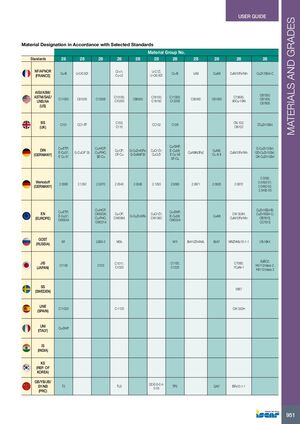

Обозначение материалов в соответствии с выбранными стандартами
Номер группы материалов 28
| Стандарты | Обозначения материалов |
|---|---|
| NF/AFNOR (ФРАНЦИЯ) | Cu-B, U-Cr0.8Zr, Ci-c1; Cu-c2, U-Cr0.8Zr, Cu-B, UA9, CuAl8, CuNi10Fe1Mn, CuZn16Si4-C |
| AISI/ASM/ASTM/SAE/UNS/AA (США) | C11000, C81500, C10300, C10100; C10200, C18100; C18150, C11000; C12200, C86550, C95500, C61000, C70600; 90Cu-10Ni, C87500; C87400; C87800 |
| BS (ВЕЛИКОБРИТАНИЯ) | C101, CC1-FF, C103; C110, CC102, C106, CN 102; CN102, ZCuZn16Si4 |
| DIN (ГЕРМАНИЯ) | Cu-ETP; E-Cu57; E Cu 57, Cu-HCP; G-CuCrF 35, Cu-HCP; Cu-PHC; SE-Cu, Cu-OF; OF-Cu, Cu-DHP; G-CuZn40Fe; G-SoMsF30, CuCr1Zr; CuCrZr, Cu-DHP; E-Cu58; E Cu 58; SF-Cu, E-Cu57; CuAl8; Cu Al 8, CuAl9Ni3Fe2, CuNi10Fe1Mn, G-CuZn15Si4; GD-CuZn15Si4; GK-CuZn15Si4 |
| Werkstoff (ГЕРМАНИЯ) | 2.0060, 2.1292, 2.0070, 2.0040, 2.0590, 2.1293, 2.0090, 2.0971, 2.0920, 2.0872, 2.0492; 2.0492-01; 2.0492-02; 2.0492-05 |
| EN (ЕВРОПА) | Cu-ETP; E-Cu57; CW004A, Cu-HCP; CW020A; CW021A, Cu-PHC; Cu-OF; CW008A, Cu-DHP; G-CuZn40Fe, CuCr1Zr; CW106C, E-Cu58; CW024A, CuAl8, CuNi10Fe1Mn, CuZn16Si4-B; CuZn16Si4-C; CB761S; CC761S |
| GOST (РОССИЯ) | M1, LS60-2, M0b, M1f, BrA10Zh4N4L, BrA7, MNZhMtz10-1-1, LTs16K4 |
| JIS (ЯПОНИЯ) | C1100, C103, C1011; C1020, C1100; C1220, C7060; YCuNi-1, SzBC2; H5112/class 2; H5112/class 3 |
| SS (ШВЕЦИЯ) | 5667 |
| UNE (ИСПАНИЯ) | C11020, C-1120, CW 352H |
| UNI (ИТАЛИЯ) | Cu-DHP |
| IS (ИНДИЯ) | |
| KS (РЕСПУБЛИКА КОРЕЯ) | |
| GB/YB/JB/SY/NB (КНР) | T2, TU2, QCr0.6-0.4-0.05, TP2, QAI7, BFe10-1-1 |
