РУКОВОДСТВО ПОЛЬЗОВАТЕЛЯ
МАТЕРИАЛЫ И СОРТА

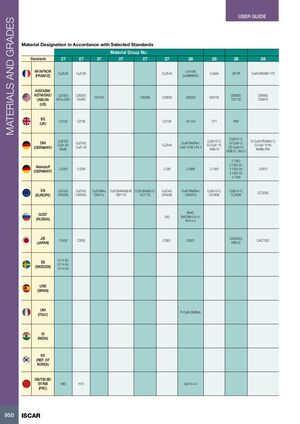

Обозначение материалов в соответствии с выбранными стандартами
Номер группы материалов 27, 28
| Стандарты | Обозначения материалов |
|---|---|
| NF/AFNOR (ФРАНЦИЯ) | CuZn20, CuZn30, CuZn40, CuSn8, UE12P, CuAl10Fe5Ni5 Y70, CuAl9Ni5Fe3 |
| AISI/ASM/ASTM/SAE/UNS/AA (США) | C24000; 80Cu-20Zn, C26000; CA260, C27453, C85566, C28000, C63000, C90700, C90800; C91700, C95800; C95810 |
| BS (ВЕЛИКОБРИТАНИЯ) | CZ103, CZ106, CZ109, CA 104, CT1, PB2 |
| DIN (ГЕРМАНИЯ) | CuZn20; CuZn 20; Ms80, CuZn30; CuZn 30, CuZn40, CuSn10-C; G-CuSn 10; SnBz10, CuSn12-C; G-CuSn12; SnBz12, Gbz12; GZ-CuSn12, CuAl10Ni5Fe4; CuAI 10 Ni 5 Fe 4, G-CuAl10Fe5Ni5-C; G-CuAI 10 Ni; NiAlBz-F60, G-CuAl10Fe5Ni5-C; G-CuAI 10 Ni |
| Werkstoff (ГЕРМАНИЯ) | 2.0250, 2.0265, 2.036, 2.0966, 2.1050, 2.1052; 2.1052.01; 2.1052.03; 2.1052.04; 2.1056, 2.0975 |
| EN (ЕВРОПА) | CuZn20; CW503L, CuZn30; CW505L, CuZn38As; CW511L, CuZn36AlAsSb-B; CB771S, CuZn38AsSb-C; CC771S, CuZn40; CW509L, CuAl10Ni5Fe4; CW307G, CuSn10-C; CC480K, CuSn12-C; CC483K, CC333G |
| GOST (РОССИЯ) | L60, BrAD; BrAZhN10-4-4; N10-4-4 |
| JIS (ЯПОНИЯ) | C2400, C2600, C2801, C6301, CAC502C; PBC2C, CAC703C |
| SS (ШВЕЦИЯ) | 5114-02; 5114-04; 5114-05 |
| UNE (ИСПАНИЯ) | |
| UNI (ИТАЛИЯ) | P-CuAl10Ni5Fe5 |
| IS (ИНДИЯ) | |
| KS (РЕСПУБЛИКА КОРЕЯ) | |
| GB/YB/JB/SY/NB (КНР) | H80, H70, QAI10-4-4 |
