РУКОВОДСТВО ПОЛЬЗОВАТЕЛЯ
МАТЕРИАЛЫ И СОРТА

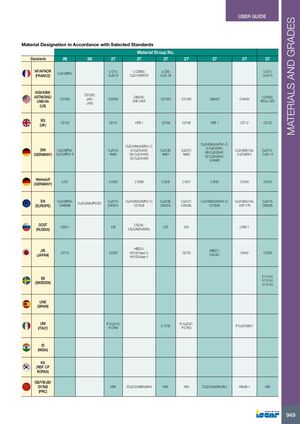

Обозначение материалов в соответствии с выбранными стандартами
Номер группы материалов 26, 27
| Стандарты | Обозначения материалов |
|---|---|
| NF/AFNOR (ФРАНЦИЯ) | CuZn38Pb2, U-Z10; CuZn10, U-Z36N3; CuZn19Al6Y20, U-Z36; CuZn 36, U-Z15; CuZn15 |
| AISI/ASM/ASTM/SAE/UNS/AA (США) | C37000, C67300; J461; J463, C22000, C86200; SAE 430A, C27200, C27400, C86400, C46400, C23000; 85Cu-15Zn |
| BS (ВЕЛИКОБРИТАНИЯ) | CZ129, CZ101, CZ108, CZ108, HTB 1, CZ112, CZ102, HTB 1 |
| DIN (ГЕРМАНИЯ) | CuZn38Pb2; CuZn38Pb1.5, CuZn10; Ms90, CuZn34Mn3Al2Fe1-C; G-CuZn34Al2; GK-CuZn34Al2; GZ-CuZn34Al2, CuZn36; Ms64, CuZn37; Ms63, CuZn35Mn2Al1Fe1-C; G-CuZn35Al1; GK-CuZn35Al1; GZ-CuZn35Al1; G-Ms60, CuZn38Sn1As; CuZn38Sn1, CuZn15; CuZn 15 |
| Werkstoff (ГЕРМАНИЯ) | 2.037, 2.0230, 2.0596, 2.0335, 2.0321, 2.0592, 2.0530, 2.0240 |
| EN (ЕВРОПА) | CuZn38Pb2; CW608N; CuZn35Mn3Pb2Si1, CuZn10; CW501L, CuZn34Mn3Al2Fe1-C; CC764S, CuZn36; CW507L, CuZn37; CW508L, CuZn35Mn2Al1Fe1-C; CC765S, CuZn38Sn1As; CW717R, CuZn15; CW502L |
| GOST (РОССИЯ) | LS59-1, L90, LTs23A; LTs23A6Zh3MTs2, L63, L63, LO60-1 |
| JIS (ЯПОНИЯ) | C3710, C2200, HBSC4; H5102/class 3; H5102/class 4, C2720, HBSC1; CAC301, C4640, C2300, 5112-02; 5112-04; 5112-05 |
| SS (ШВЕЦИЯ) | |
| UNE (ИСПАНИЯ) | |
| UNI (ИТАЛИЯ) | P-CuZn10; P-OT90, C 2700, P-CuZn37; P-OT63, P-CuZn39Sn1 |
| IS (ИНДИЯ) | |
| KS (РЕСПУБЛИКА КОРЕЯ) | |
| GB/YB/JB/SY/NB (КНР) | H90, ZCuZn25Al6Fe3Mn3, H65, H63, ZCuZn35Al2Mn2Fe1, HSn60-1, H85 |
