РУКОВОДСТВО ПОЛЬЗОВАТЕЛЯ
МАТЕРИАЛЫ И СОРТА

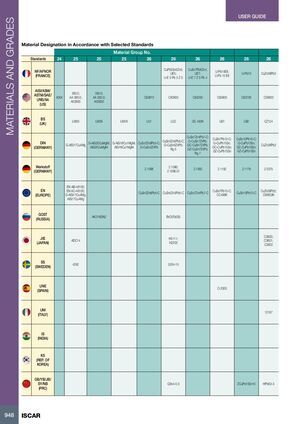

Обозначение материалов в соответствии с выбранными стандартами
Номер группы материалов 24, 25, 26
| Стандарты | Обозначения материалов |
|---|---|
| NF/AFNOR (ФРАНЦИЯ) | CuPb5Sn5Zn5; UE5; U-E 5 Pb 5 Z 5, CuSn7Pb6Zn4; UE7; U-E 7 Z 5 Pb 4, U-Pb15E8; U-Pb 15 E8, U-Pb10, CuZn36Pb3 |
| AISI/ASM/ASTM/SAE/UNS/AA (США) | A304, 390.0; AA 390.0; A03900, 393.0; AA 393.0; A03930, C83810, C83600, C93200, C93800, C93700, C36000 |
| BS (ВЕЛИКОБРИТАНИЯ) | LM30, LM29, LM28, LG1, LG2, GC 493K, LB1, LB2, CZ124 |
| DIN (ГЕРМАНИЯ) | G-AlSi17Cu4Mg; AlSi17Cu4Mg, G-AlSi20CuMgNi; AlSi20CuMgNi, G-AlSi18Cu1MgNi; AlSi18Cu1MgNi, CuSn3Zn8Pb5-C; G-CuSn2ZnPb, CuSn5Zn5Pb5-C; G-CuSn5ZnPb, CuSn7Zn4Pb7-C; G-CuSn7ZnPb; GZ-CuSn7ZnPb; Rg 7, CuSn7Pb15-C; GC-CuPb15Sn; GZ-CuPb15Sn, CuSn10Pb10-C; GC-CuPb10Sn; GZ-CuPb10Sn, GC-CuSn7ZnPb; Rg 5, CuZn36Pb3 |
| Werkstoff (ГЕРМАНИЯ) | 2.1098, 2.1096; 2.1096.01, 2.1090, 2.1182, 2.1176, 2.0375 |
| EN (ЕВРОПА) | EN AB-48100; EN AC-48100; G-AlSi17Cu4Mg; AlSi17Cu4Mg, CuSn3Zn8Pb5-C, CuSn5Zn5Pb5-C, CuSn7Zn4Pb7-C, CuSn7Pb15-C; CC496K, CuSn10Pb10-C, CuZn36Pb3; CW603N |
| GOST (РОССИЯ) | AK21M2N2, BrO5Ts5S5 |
| JIS (ЯПОНИЯ) | ADC14, H5111; H2203, C3600; C3601; C3602 |
| SS (ШВЕЦИЯ) | 4282, 5204-15 |
| UNE (ИСПАНИЯ) | C-3300 |
| UNI (ИТАЛИЯ) | 12167 |
| IS (ИНДИЯ) | |
| KS (РЕСПУБЛИКА КОРЕЯ) | |
| GB/YB/JB/SY/NB (КНР) | QSn4-0.3, ZCuPb10Sn10, HPb63-3 |
