Материалы и марки

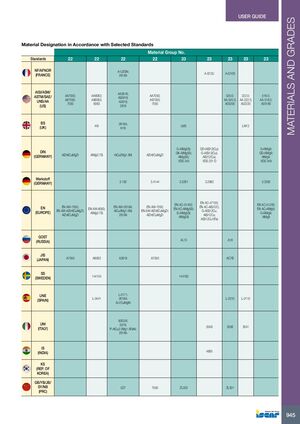

Обозначение материалов в соответствии с выбранными стандартами
| Стандарты | Номер группы материала 22 | Номер группы материала 23 | |||||||
|---|---|---|---|---|---|---|---|---|---|
| NF/AFNOR (ФРАНЦИЯ) | A-U2GN; 2618A | A-S12U | A-G10S | ||||||
| AISI/ASM/ASTM/SAE/UNS/AA (США) | AA7050; A97050; 7050 | AA6063; A96063; 6063 | AA2618; A92618; A2618; 2618 | AA7050; A97050; 7050 | 520.0; AA 520.0; A05200 | 222.0; AA 222.0; A02220 | 518.0; AA 518.0; A05180 | ||
| BS (ВЕЛИКОБРИТАНИЯ) | H9 | 2618A; H16 | LM5 | LM12 | |||||
| DIN (ГЕРМАНИЯ) | AlZn6CuMgZr | AlMg0.7Si | AlCu2Mg1.5Ni | AlZn6CuMgZr | G-AlMg5Si; GK-AlMg5Si; AlMg5Si; VDS 245 | GD-AlSi12(Cu); G-AlSi12(Cu); AlSi12(Cu); VDS 231 D | G-AlMg9; GD-AlMg9; AlMg9; VDS 349 | ||
| Материал (ГЕРМАНИЯ) | 3.192 | 3.4144 | 3.3261 | 3.2982 | 3.3292 | ||||
| EN (ЕВРОПА) | EN AW-7050; EN AW-AlZn6CuMgZr; AlZn6CuMgZr | EN AW-6063; AlMg0.7Si | EN AW-2618A; AlCu2Mg1.5Ni; 2618A | EN AW-7050; EN AW-AlZn6CuMgZr; AlZn6CuMgZr | EN AC-51400; EN AC-AlMg5Si; G-AlMg5Si; AlMg5Si | EN AC-47100; EN AC-AlSi12C; G-AlSi12Cu; AlSi12Cu; AlSi12Cu1(Fe) | EN AC-51200; EN AC-AlMg9; G-AlMg9; AlMg9 | ||
| ГОСТ (РОССИЯ) | AL13 | A18 | |||||||
| JIS (ЯПОНИЯ) | A7050 | A6063 | A2618 | A7050 | AC7B | ||||
| SS (ШВЕЦИЯ) | 144104 | 144163 | |||||||
| UNE (ИСПАНИЯ) | L-3441 | L-3171; 2618A; Al-2CuMgNi | L-2310 | L-2110 | |||||
| UNI (ИТАЛИЯ) | 9002/6; 3578; P-AlCu2.3Mg1.5FeNi; 2618A | 3048 | 3056 | 3041 | |||||
| IS (ИНДИЯ) | 4685 | ||||||||
| KS (РЕСПУБЛИКА КОРЕЯ) | |||||||||
| GB/YB/JB/SY/NB (КНР) | LD7 | 7050 | ZL303 | ZL301 | |||||
