Материалы и марки

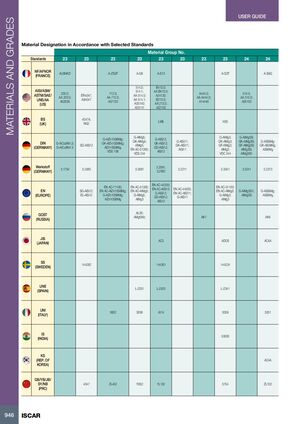

Обозначение материалов в соответствии с выбранными стандартами
| Стандарты | Номер группы материала 23 | Номер группы материала 24 | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| NF/AFNOR (ФРАНЦИЯ) | AU5NKZr | A-Z5GF | A-G6 | A-S13 | A-G3T | A-S9G | ||||
| AISI/ASM/ASTM/SAE/UNS/AA (США) | 203.0; AA 203.0; A02030 | ER4047; A94047 | 712.0; AA 712.0; A07120 | 514.0; 514.1; AA 514.0; AA 514.1; A05140; A05141 | B413.0; AA B413.0; A24130; B213.0; AA 213.0; A22130 | A444.0; AA A444.0; A14440 | 515.0; AA 515.0; A05150 | |||
| BS (ВЕЛИКОБРИТАНИЯ) | 4047A; NG2 | LM6 | H20 | |||||||
| DIN (ГЕРМАНИЯ) | G-AICu5Ni1,5; G-AICu5Ni1.5 | G-AlZn10Si8Mg; GK-AlZn10Si8Mg; AlZn10Si8Mg; VDS 108 | G-AlMg5; GK-AlMg5; AlMg5; EN AC-51300 | SG-AlSi12; GD-AlSi12; AlSi12; VDS 244 | G-AlSi11; GK-AlSi11; AlSi11 | G-AlMg3; GK-AlMg3; GF-AlMg3; AlMg3 | G-AlMg3Si; GK-AlMg3Si; GF-AlMg3Si; AlMg3Si1; AlMg3Si | G-AlSi9Mg; GK-AlSi9Mg; AlSi9Mg | ||
| Материал (ГЕРМАНИЯ) | 3.1754 | 3.2585 | 3.3561; 3,2582 | 3.2581 | 3.2211 | 3.3541 | 3.3241 | 3.2373 | ||
| EN (ЕВРОПА) | SG-AlSi12; EL-AlSi12 | EN AC-71100; EN AC-AlZn10Si8Mg; G-AlZn10Si8Mg; AlZn10Si8Mg | EN AC-51300; EN AC-AlMg5; G-AlMg5; AlMg5 | EN AC-44200; EN AC-AlSi12; G-AlSi12; GD-AlSi12; AlSi12 | EN AC-44000; G-AlSi11; EN AC-AlSi11 | EN AC-51100; EN AC-AlMg3; G-AlMg3; AlMg3 | G-AlMg3Si1; AlMg3Si | G-AlSi9Mg; AlSi9Mg | ||
| ГОСТ (РОССИЯ) | AL28; AMg5Mz | AK7 | AK9 | |||||||
| JIS (ЯПОНИЯ) | AC3 | ADC6 | AC4A | |||||||
| SS (ШВЕЦИЯ) | 144262 | 144261 | 144224 | |||||||
| UNE (ИСПАНИЯ) | L-2331 | L-2520 | L-2341 | |||||||
| UNI (ИТАЛИЯ) | 3602 | 3058 | 4514 | 3059 | 3051 | |||||
| IS (ИНДИЯ) | 53000 | |||||||||
| KS (РЕСПУБЛИКА КОРЕЯ) | AC4A | |||||||||
| GB/YB/JB/SY/NB (КНР) | 4047 | ZL402 | Yl302 | YL102 | 5754 | ZL102 | ||||
