Материалы и марки

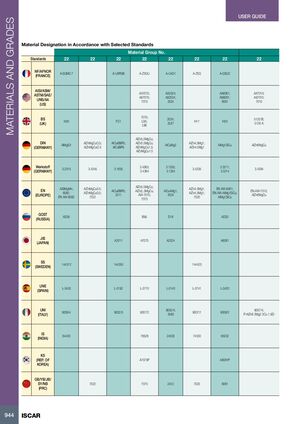

Обозначение материалов в соответствии с выбранными стандартами
| Стандарты | Номер группы материала 22 | |||||||
|---|---|---|---|---|---|---|---|---|
| NF/AFNOR (ФРАНЦИЯ) | A-SGM0.7 | A-U5PbBi | A-Z5GU | A-U4G1 | A-Z5G | A-GSUC | ||
| AISI/ASM/ASTM/SAE/UNS/AA (США) | AA7075; A97075; 7075 | AA2024; A92024; 2024 | AA6061; A96061; 6061 | AA7010; A97010; 7010 | ||||
| BS (ВЕЛИКОБРИТАНИЯ) | H30 | FC1 | 7075; L95; L96 | 2024; 2L97 | H17 | H20 | 5120 B; 5130 A | |
| DIN (ГЕРМАНИЯ) | AlMgSi1 | AlZnMgCuO,5; AlZnMgCuO.5 | AlCu6BiPb; AlCuBiPb | AlZn5,5MgCu; AlZn5.5MgCu; AlZnMgCu1,5; AlZnMgCu1.5 | AlCuMg2 | AlZn4,5Mg1; AlZn4.5Mg1 | AlMg1SiCu; AlZn6MgCu | |
| Материал (ГЕРМАНИЯ) | 3.2315 | 3.4345 | 3.1655 | 3.4365; 3.4364 | 3.1355; 3.1354 | 3.4335 | 3.3211; 3.3214 | 3.4394 |
| EN (ЕВРОПА) | AlSiMgMn; 6082; EN AW-6082 | AlZnMgCu0.5; AlZnMgCu0,5; 7022 | AlCu6BiPb; 2011 | AlZn5.5MgCu; AlZn5,.5MgCu; AW-7075; 7075 | AlCu4Mg1; 2024 | AlZn4.5Mg1; AlZn4,5Mg1; 7020 | EN AW-6061; AlMg1SiCu; EN AW-AlMg1SiCu; AlZn6MgCu; EN AW-7010 | |
| ГОСТ (РОССИЯ) | AD35 | B95 | D16 | AD33 | ||||
| JIS (ЯПОНИЯ) | A2011 | A7075 | A2024 | A6061 | ||||
| SS (ШВЕЦИЯ) | 144312 | 144355 | 144425 | |||||
| UNE (ИСПАНИЯ) | L-3453 | L-3192 | L-3710 | L-3140 | L-3741 | L-3420 | ||
| UNI (ИТАЛИЯ) | 9006/4 | 9002/5 | 9007/2; 9002/4; 3583 | 9007/1 | 9006/2; 9007/4; P-AlZn6 2Mg2 3Cu 1.8Zr | |||
| IS (ИНДИЯ) | 64430 | 76528 | 24530 | 74530 | 65032 | |||
| KS (РЕСПУБЛИКА КОРЕЯ) | A7075P | A6061P | ||||||
| GB/YB/JB/SY/NB (КНР) | 7022 | 7075 | 2A12 | 7020 | 6061 | |||
