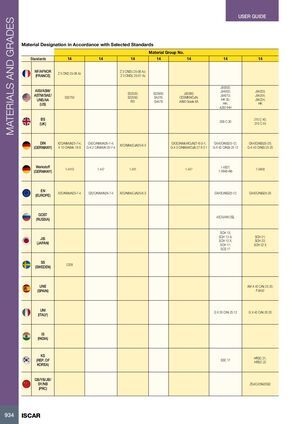

МАТЕРИАЛЫ И СОРТА
Обозначение материалов в соответствии с выбранными стандартами
Группа материалов № 14, 14, 14, 14, 14, 14, 14
| Стандарты | Группа 14 | Группа 14 | Группа 14 | Группа 14 | Группа 14 | Группа 14 | Группа 14 |
|---|---|---|---|---|---|---|---|
| NF/AFNOR (ФРАНЦИЯ) | Z 5 CND 25-06 Az | Z 3 CNDU 25-06 Az; Z 3 CNDU 25-07 Az | |||||
| AISI/ASM/ASTM/SAE/UNS/AA (США) | S32750 | S32520; S32550; S32950; SA276; F61; SA479 | J93380; CD3MNWCuN; A890 Grade 6A | J93503; J94003; J94013; HK 30; HH; A297-HH; J94203; J94204; J94224; HK | |||
| BS (ВЕЛИКОБРИТАНИЯ) | 309 C 30; 310 C 40; 310 C 45 | ||||||
| DIN (ГЕРМАНИЯ) | X2CrNiMoN25-7-4; X 10 CrNiMo 18 9 | GX2CrNiMoN26-7-4; G-X 2 CrNiMoN 25-7-4 | X2CrNiMoCuN25-6-3 | GX3CrNiMoWCuN27-6-3-1; G-X 3 CrNiMoWCuN 27 6 3 1 | GX40CrNiSi25-12; G-X 40 CrNiSi 25 12 | GX40CrNiSi25-20; G-X 40 CrNiSi 25 20 | |
| Werkstoff (ГЕРМАНИЯ) | 1.4410 | 1.447 | 1.451 | 1.447 | 1.4837; 1.4848 | 1.4848+Nb | |
| EN (ЕВРОПА) | X2CrNiMoN25-7-4 | GX2CrNiMoN26-7-4 | X2CrNiMoCuN25-6-3 | GX40CrNiSi25-12 | GX40CrNiSi25-20 | ||
| GOST (РОССИЯ) | 40Ch24N12SL | ||||||
| JIS (ЯПОНИЯ) | SCH 13; SCH 13 A; SCH 13 X; SCH 17; SCS 17; SCH 21; SCH 22; SCH 22 X | ||||||
| SS (ШВЕЦИЯ) | 2328 | ||||||
| UNE (ИСПАНИЯ) | AM-X 40 CrNi 25 20; F.8452 | ||||||
| UNI (ИТАЛИЯ) | G X 35 CrNi 25 12 | G X 40 CrNi 26 20 | |||||
| IS (ИНДИЯ) | |||||||
| KS (РЕСПУБЛИКА КОРЕЯ) | SSC 17; HRSC 21; HRSC 22 | ||||||
| GB/YB/JB/SY/NB (КНР) | ZG4Cr25Ni20Si2 |
