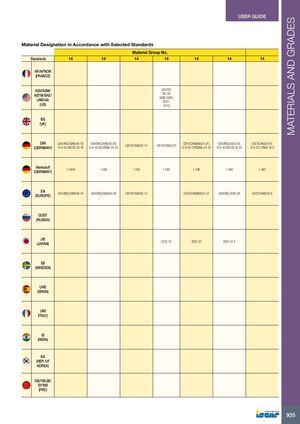

МАТЕРИАЛЫ И СОРТА
Обозначение материалов в соответствии с выбранными стандартами
Группа материалов № 14, 14, 14, 14, 14, 14, 14
| Стандарты | Группа 14 | Группа 14 | Группа 14 | Группа 14 | Группа 14 | Группа 14 | Группа 14 |
|---|---|---|---|---|---|---|---|
| NF/AFNOR (ФРАНЦИЯ) | |||||||
| AISI/ASM/ASTM/SAE/UNS/AA (США) | J94202; CK 20; AMS 5365; A351; A743 | ||||||
| BS (ВЕЛИКОБРИТАНИЯ) | |||||||
| DIN (ГЕРМАНИЯ) | GX40NiCrSiNb38-19; G-X 40 NiCrSi 38 18 | GX40NiCrSiNb35-26; G-X 40 NiCrSiNb 35 25 | GX25CrNiSi20-14; GX15CrNi25-20 | GX40CrNiSiNb24-24; G-X 30 CrNiSiNb 24 24 | GX40NiCrSi35-26; G-X 40 NiCrSi 35 25 | GX25CrNiSi18-9; G-X 25 CrNiSi 18 9 | |
| Werkstoff (ГЕРМАНИЯ) | 1.4849 | 1.485 | 1.483 | 1.484 | 1.486 | 1.486 | 1.483 |
| EN (ЕВРОПА) | GX40NiCrSiNb38-19 | GX40NiCrSiNb35-26 | GX25CrNiSi20-14 | GX40CrNiSiNb24-24 | GX40NiCrSi35-26 | GX25CrNiSi18-9 | |
| GOST (РОССИЯ) | |||||||
| JIS (ЯПОНИЯ) | SCS 18 | SCH 33 | SCH 24 X | ||||
| SS (ШВЕЦИЯ) | |||||||
| UNE (ИСПАНИЯ) | |||||||
| UNI (ИТАЛИЯ) | |||||||
| IS (ИНДИЯ) | |||||||
| KS (РЕСПУБЛИКА КОРЕЯ) | |||||||
| GB/YB/JB/SY/NB (КНР) |
