МАТЕРИАЛЫ И СОРТА

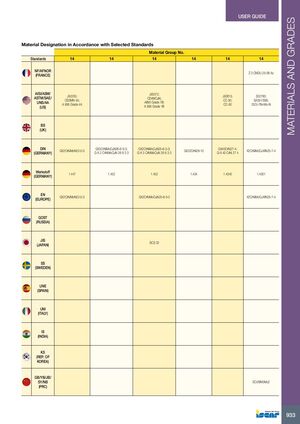

Обозначение материалов в соответствии с выбранными стандартами
Группа материалов № 14, 14, 14, 14, 14, 14
| Стандарты | Группа 14 | Группа 14 | Группа 14 | Группа 14 | Группа 14 | Группа 14 |
|---|---|---|---|---|---|---|
| NF/AFNOR (ФРАНЦИЯ) | Z 3 CNDU 25-06 Az | |||||
| AISI/ASM/ASTM/SAE/UNS/AA (США) | J92205; CD3MN 4A; A 995 Grade 4A | J93372; CD4MCuN; A890 Grade 1B; A 995 Grade 1B | J92615; CC 50; 25Cr-7Ni-Mo-N | |||
| BS (ВЕЛИКОБРИТАНИЯ) | ||||||
| DIN (ГЕРМАНИЯ) | GX2CrNiMoN22-5-3 | GX3CrNiMoCuN26-6-3-3; G-X 2 CrNiMoCuN 26 6 3 3; GX2CrNiMoCuN25-6-3-3; G-X 3 CrNiMoCuN 26 6 3 3 | GX32CrNi28-10 | GX40CrNi27-4; G-X 40 CrNi 27 4 | X2CrNiMoCuWN25-7-4 | |
| Werkstoff (ГЕРМАНИЯ) | 1.447 | 1.452 | 1.434 | 1.4340 | 1.4501 | |
| EN (ЕВРОПА) | GX2CrNiMoN22-5-3 | GX2CrNiMoCuN25-6-3-3 | X2CrNiMoCuWN25-7-4 | |||
| GOST (РОССИЯ) | ||||||
| JIS (ЯПОНИЯ) | SCS 32 | |||||
| SS (ШВЕЦИЯ) | ||||||
| UNE (ИСПАНИЯ) | ||||||
| UNI (ИТАЛИЯ) | ||||||
| IS (ИНДИЯ) | ||||||
| KS (РЕСПУБЛИКА КОРЕЯ) | ||||||
| GB/YB/JB/SY/NB (КНР) | 0Cr26Ni5Mo2 |
