МАТЕРИАЛЫ И СОРТА

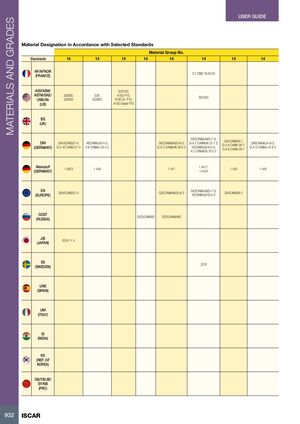

Обозначение материалов в соответствии с выбранными стандартами
Группа материалов № 14, 14, 14, 14, 14, 14, 14, 14
| Стандарты | Группа 14 | Группа 14 | Группа 14 | Группа 14 | Группа 14 | Группа 14 | Группа 14 | Группа 14 | |
|---|---|---|---|---|---|---|---|---|---|
| NF/AFNOR (ФРАНЦИЯ) | Z 2 CND 18.05.03 | ||||||||
| AISI/ASM/ASTM/SAE/UNS/AA (США) | J92605; J93005 | 329; S32900 | S33100; A182 F10; A182 Gr. F10; A182 Grade F10 | S31500 | |||||
| BS (ВЕЛИКОБРИТАНИЯ) | |||||||||
| DIN (ГЕРМАНИЯ) | GX40CrNiSi27-4; G-X 40 CrNiSi 27 4 | X6CrNiMo26-4-2; X 6 CrNiMo 26 4 2 | GX2CrNiMoN25-6-3; G-X 3 CrNiMoN 26 6 3 | GX2CrNiMoN25-7-3; G-X 2 CrNiMoN 25 7 3; X2CrNiMoSi18-5-3; X 2 CrNiMoSi 18 5 3 | GX4CrNiN26-7; G-X 8 CrNiN 26-7; G-X 6 CrNiN 26-7 | GX6CrNiMo24-8-2; G-X 6 CrNiMo 24 8 2 | |||
| Werkstoff (ГЕРМАНИЯ) | 1.4823 | 1.448 | 1.447 | 1.4417; 1.4424 | 1.435 | 1.446 | |||
| EN (ЕВРОПА) | GX40CrNiSi27-4 | GX2CrNiMoN25-6-3 | GX2CrNiMoN25-7-3; X2CrNiMoSi18-5-3 | GX4CrNiN26-7 | |||||
| GOST (РОССИЯ) | 03Ch22N6M2 | 03Ch24N6AM3 | |||||||
| JIS (ЯПОНИЯ) | SCH 11 X | ||||||||
| SS (ШВЕЦИЯ) | 2376 | ||||||||
| UNE (ИСПАНИЯ) | |||||||||
| UNI (ИТАЛИЯ) | |||||||||
| IS (ИНДИЯ) | |||||||||
| KS (РЕСПУБЛИКА КОРЕЯ) | |||||||||
| GB/YB/JB/SY/NB (КНР) |
