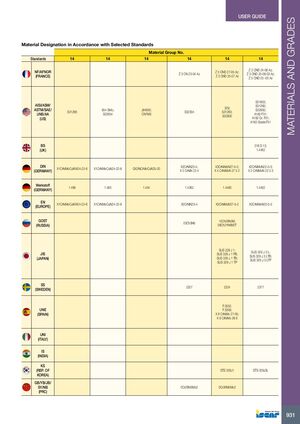

МАТЕРИАЛЫ И СОРТА
Обозначение материалов в соответствии с выбранными стандартами
Группа материалов № 14, 14, 14, 14, 14, 14
| Стандарты | Группа 14 | Группа 14 | Группа 14 | Группа 14 | Группа 14 | Группа 14 |
|---|---|---|---|---|---|---|
| NF/AFNOR (ФРАНЦИЯ) | Z 2 CND 24-08 Az; Z 5 CND 27-05 Az; Z 3 CND 25-06-03 Az; Z 3 CND 25-07 Az; Z 3 CND 25-05 Az | |||||
| AISI/ASM/ASTM/SAE/UNS/AA (США) | S31266 | 654 SMo; S32654 | J94650; CN7MS | S32304 | S31260; S32900 | S31803; S31260; S32900; A182 F51; A182 Gr. F51; A182 Grade F51 |
| BS (ВЕЛИКОБРИТАНИЯ) | 318 S 13; 1.4462 | |||||
| DIN (ГЕРМАНИЯ) | X1CrNiMoCuNW24-22-6 | X1CrNiMoCuN24-22-8; GX2NiCrMoCuN25-20 | X2CrNiN23-4; X 2 CrNiN 23 4 | X3CrNiMoN27-5-2; X 4 CrNiMoN 27 5 2 | X2CrNiMoN22-5-3; X 2 CrNiMoN 22 5 3 | |
| Werkstoff (ГЕРМАНИЯ) | 1.466 | 1.465 | 1.454 | 1.4362 | 1.4460 | 1.4462 |
| EN (ЕВРОПА) | X1CrNiMoCuNW24-22-6 | X1CrNiMoCuN24-22-8 | X2CrNiN23-4 | X3CrNiMoN27-5-2 | X2CrNiMoN22-5-3 | |
| GOST (РОССИЯ) | 03Ch3N6 | 10Ch26N5M; 08Ch21N6M2T | ||||
| JIS (ЯПОНИЯ) | SUS 329 J 1; SUS 329 J 1 FB; SUS 329 J 1 TB; SUS 329 J 1 TP | SUS 329 J 3 L; SUS 329 J 3 LTB; SUS 329 J 3 LTP | ||||
| SS (ШВЕЦИЯ) | 2327 | 2324 | 2377 | |||
| UNE (ИСПАНИЯ) | F.3552; F.3309; X 8 CrNiMo 27-05; X 8 CrNiMo 26 6 | |||||
| UNI (ИТАЛИЯ) | ||||||
| IS (ИНДИЯ) | ||||||
| KS (РЕСПУБЛИКА КОРЕЯ) | STS 329J1; STS 329J3L | |||||
| GB/YB/JB/SY/NB (КНР) | 0Cr26Ni5Mo2 | 0Cr26Ni5Mo2 |
