РУКОВОДСТВО ПОЛЬЗОВАТЕЛЯ
Материалы и марки

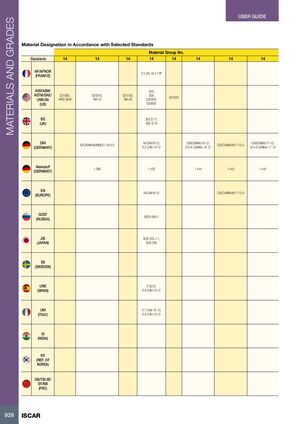

Обозначение материалов в соответствии с выбранными стандартами
| Стандарты | Группа материала № 14 | |||||||
|---|---|---|---|---|---|---|---|---|
| НФ/АФНОР (ФРАНЦИЯ) |
Z 5 CN 18-11 FF | |||||||
| AISI/ASM/ASTM/SAE/UNS/AA (США) |
S21800; AMS 5848 | S20910; XM-19 | S24100; XM-28 | 305; S30500; 308; S30800 | S31630 | |||
| БС (ВЕЛИКОБРИТАНИЯ) |
305 S 17; 305 S 19 | |||||||
| ДИН (ГЕРМАНИЯ) |
X2CrNiMnMoNNb21-16-5-3 | X4CrNi18-12; X 5 CrNi 18 12 | GX6CrNIMo18-12; G-X 6 CrNIMo 18 12 | GX6CrNiMo17-13; GX2CrNIMoM17-13-4; G-X 6 CrNiMo 17 13; G-X 2 CrNIMoM17-13-4 | ||||
| Werkstoff (ГЕРМАНИЯ) |
1.396 | 1.430 | 1.444 | 1.445; 1.445 | ||||
| ЕН (ЕВРОПА) |
X4CrNi18-12 | GX2CrNIMoM17-13-4 | ||||||
| ГОСТ (РОССИЯ) |
06Ch18N11 | |||||||
| ДжИС (ЯПОНИЯ) |
SUS 305 J 1; SUS 305 | |||||||
| СС (ШВЕЦИЯ) |
||||||||
| УНЕ (ИСПАНИЯ) |
F.3513; X 8 CrNi 18 12 | |||||||
| УНИ (ИТАЛИЯ) |
X 7 CrNi 18 10; X 8 CrNi 19 10 | |||||||
| ИС (ИНДИЯ) |
||||||||
| КС (РЕП. КОРЕЯ) |
||||||||
| ГБ/УБ/ДжБ/СХ/НБ (КНР) |
||||||||
