РУКОВОДСТВО ПОЛЬЗОВАТЕЛЯ
Материалы и марки

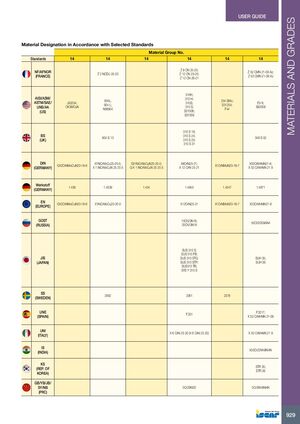

Обозначение материалов в соответствии с выбранными стандартами
| Стандарты | Группа материала № 14 | |||||
|---|---|---|---|---|---|---|
| НФ/АФНОР (ФРАНЦИЯ) |
Z 2 NCDU 25-20 | Z 8 CN 25-20; Z 12 CN 25-20; Z 12 CN 26-21 | Z 52 CMN 21-09 Az; Z 53 CMN 21-09 Az | |||
| AISI/ASM/ASTM/SAE/UNS/AA (США) |
J93254; CK3MCuN | 904L; 904 L; N08904 | 310H; 310 H; 310S; 310 S; S31008; S31009 | 254 SMo; S31254; F44; S63008; EV 8 | ||
| БС (ВЕЛИКОБРИТАНИЯ) |
904 S 13 | 310 S 16; 310 S 24; 310 S 25; 310 S 31 | 349 S 52 | |||
| ДИН (ГЕРМАНИЯ) |
GX2CrNiMoCuN20-18-6 | X1NiCrMoCu25-20-5; X 1 NiCrMoCu 25 20 5; GX1NiCrMoCuN25-20-5; G-X 1 NiCrMoCuN 25 20 5 | X8CrNi25-21; X 12 CrNi 25 21 | X1CrNiMoN20-18-7 | X53CrMnNiN21-9; X 53 CrMnNiN 21 9 | |
| Werkstoff (ГЕРМАНИЯ) |
1.456 | 1.4539; 1.454 | 1.4845 | 1.4547 | 1.4871 | |
| ЕН (ЕВРОПА) |
GX2CrNiMoCuN20-18-6 | X1NiCrMoCu25-20-5 | X12CrNi25-21 | X1CrNiMoN20-18-7 | X53CrMnNiN21-9 | |
| ГОСТ (РОССИЯ) |
10Ch23N18; 20Ch23N18 | 55Ch20G9AN4 | ||||
| ДжИС (ЯПОНИЯ) |
SUS 310 S; SUS 310 FB; SUS 310 STG; SUS 310 STP; SUS310 TB; SYS Y 310 S | SUH 35; SUH 36 | ||||
| СС (ШВЕЦИЯ) |
2562 | 2361 | 2378 | |||
| УНЕ (ИСПАНИЯ) |
F.331 | F.3217; X 53 CrMnNiN 21-09 | ||||
| УНИ (ИТАЛИЯ) |
X 6 CrNi 25 20 (X 6 CrNi 25 20) | X 53 CrMnNiN 21 9 | ||||
| ИС (ИНДИЯ) |
X53Cr22Mn9Ni4N | |||||
| КС (РЕП. КОРЕЯ) |
STR 35; STR 36 | |||||
| ГБ/УБ/ДжБ/СХ/НБ (КНР) |
0Cr25Ni20 | 5Cr2Mn9Ni4N | ||||
