РУКОВОДСТВО ПОЛЬЗОВАТЕЛЯ
Материалы и марки

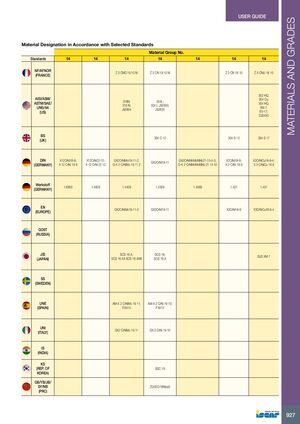

Обозначение материалов в соответствии с выбранными стандартами
| Стандарты | Группа материала № 14 | ||||||
|---|---|---|---|---|---|---|---|
| НФ/АФНОР (ФРАНЦИЯ) |
Z 3 CND 19.10 M | Z 3 CN 19.10 M | Z 2 CN 18 10 | Z 6 CNU 18 10 | |||
| AISI/ASM/ASTM/SAE/UNS/AA (США) |
316N; 316 N; J92804 | 304L; 304 L J92500; J92620 | 302 HQ; 304 Cu; 304 HQ; XM-7; EV-17; S30430 | ||||
| БС (ВЕЛИКОБРИТАНИЯ) |
304 C 12 | 304 S 12 | 394 S 17 | ||||
| ДИН (ГЕРМАНИЯ) |
X12CrNi18-9; X 12 CrNi 18 9 | X12CrNi22-12; X 12 CrNi 22 12 | GX2CrNiMo19-11-2; GX2CrNi19-11; G-X 2 CrNiMo 19 11 2; G-X 2 CrNi 19 11 | GX2CrNiMnMoNNb21-15-4-3; G-X 2 CrNiMnMoNNb 21 15 43 | X2CrNi18-9; X 2 CrNi 18 9 | X3CrNiCu18-9-4; X 3 CrNiCu 18 9 | |
| Werkstoff (ГЕРМАНИЯ) |
1.6900 | 1.4829 | 1.4409; 1.4309 | 1.4569 | 1.431 | 1.457 | |
| ЕН (ЕВРОПА) |
GX2CrNiMo19-11-2; GX2CrNi19-11 | X2CrNi18-9 | X3CrNiCu18-9-4 | ||||
| ГОСТ (РОССИЯ) |
|||||||
| ДжИС (ЯПОНИЯ) |
SCS 16 A; SCS 16 AX SCS 16 AXN | SCS 19; SCS 19 A | SUS XM 7 | ||||
| СС (ШВЕЦИЯ) |
|||||||
| УНЕ (ИСПАНИЯ) |
AM-X 2 CrNiMo 19 11; F.8415 | AM-X 2 CrNi 19 10; F.8412 | |||||
| УНИ (ИТАЛИЯ) |
GX2 CrNiMo 19 11 | GX 2 CrNi 19 10 | |||||
| ИС (ИНДИЯ) |
|||||||
| КС (РЕП. КОРЕЯ) |
SSC 19 | ||||||
| ГБ/УБ/ДжБ/СХ/НБ (КНР) |
ZG00Cr18Nice0 | ||||||
