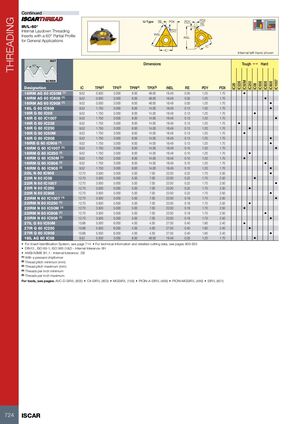

РЕЗЬБА (продолжение)
IR/L-60° Укладочная резьба внутренняя
Пластины с частичным профилем 60° для универсального применения
Показана внутренняя резьба левого направления
| Обозначение | IC | TPN(2) | TPX(3) | TPIN(4) | TPIX(5) | INSL | RE | PDY | PDX |
|---|---|---|---|---|---|---|---|---|---|
| 16IRM AG 60 IC50M (1) | 9.52 | 0.500 | 3.000 | 8.00 | 48.00 | 16.49 | 0.05 | 1.20 | 1.70 |
| 16IRM AG 60 IC808 (1) | 9.52 | 0.500 | 3.000 | 8.00 | 48.00 | 16.49 | 0.05 | 1.20 | 1.70 |
| 16IRM AG 60 IC908 (1) | 9.52 | 0.500 | 3.000 | 8.00 | 48.00 | 16.49 | 0.05 | 1.20 | 1.70 |
| 16IL G 60 IC908 | 9.52 | 1.750 | 3.000 | 8.00 | 14.00 | 16.49 | 0.13 | 1.20 | 1.70 |
| 16IR G 60 IC08 | 9.52 | 1.750 | 3.000 | 8.00 | 14.00 | 16.49 | 0.13 | 1.20 | 1.70 |
| 16IR G 60 IC1007 | 9.52 | 1.750 | 3.000 | 8.00 | 14.00 | 16.49 | 0.13 | 1.20 | 1.70 |
| 16IR G 60 IC228 | 9.52 | 1.750 | 3.000 | 8.00 | 14.00 | 16.49 | 0.13 | 1.20 | 1.70 |
| 16IR G 60 IC250 | 9.52 | 1.750 | 3.000 | 8.00 | 14.00 | 16.49 | 0.13 | 1.20 | 1.70 |
| 16IR G 60 IC50M | 9.52 | 1.750 | 3.000 | 8.00 | 14.00 | 16.49 | 0.13 | 1.20 | 1.70 |
| 16IR G 60 IC908 | 9.52 | 1.750 | 3.000 | 8.00 | 14.00 | 16.49 | 0.13 | 1.20 | 1.70 |
| 16IRB G 60 IC908 (1) | 9.52 | 1.750 | 3.000 | 8.00 | 14.00 | 16.49 | 0.13 | 1.20 | 1.70 |
| 16IRM G 60 IC1007 (1) | 9.52 | 1.750 | 3.000 | 8.00 | 14.00 | 16.49 | 0.10 | 1.20 | 1.70 |
| 16IRM G 60 IC250 (1) | 9.52 | 1.750 | 3.000 | 8.00 | 14.00 | 16.49 | 0.10 | 1.20 | 1.70 |
| 16IRM G 60 IC50M (1) | 9.52 | 1.750 | 3.000 | 8.00 | 14.00 | 16.49 | 0.10 | 1.20 | 1.70 |
| 16IRM G 60 IC808 (1) | 9.52 | 1.750 | 3.000 | 8.00 | 14.00 | 16.49 | 0.10 | 1.20 | 1.70 |
| 16IRM G 60 IC908 (1) | 9.52 | 1.750 | 3.000 | 8.00 | 14.00 | 16.49 | 0.10 | 1.20 | 1.70 |
| 22IL N 60 IC908 | 12.70 | 3.500 | 5.000 | 5.00 | 7.00 | 22.00 | 0.22 | 1.70 | 2.50 |
| 22IR N 60 IC08 | 12.70 | 3.500 | 5.000 | 5.00 | 7.00 | 22.00 | 0.22 | 1.70 | 2.50 |
| 22IR N 60 IC1007 | 12.70 | 3.500 | 5.000 | 5.00 | 7.00 | 22.00 | 0.22 | 1.70 | 2.50 |
| 22IR N 60 IC250 | 12.70 | 3.500 | 5.000 | 5.00 | 7.00 | 22.00 | 0.22 | 1.70 | 2.50 |
| 22IR N 60 IC908 | 12.70 | 3.500 | 5.000 | 5.00 | 7.00 | 22.00 | 0.22 | 1.70 | 2.50 |
| 22IRM N 60 IC1007 (1) | 12.70 | 3.500 | 5.000 | 5.00 | 7.00 | 22.00 | 0.19 | 1.70 | 2.50 |
| 22IRM N 60 IC250 (1) | 12.70 | 3.500 | 5.000 | 5.00 | 7.00 | 22.00 | 0.19 | 1.70 | 2.50 |
| 22IRM N 60 IC50M (1) | 12.70 | 3.500 | 5.000 | 5.00 | 7.00 | 22.00 | 0.19 | 1.70 | 2.50 |
| 22IRM N 60 IC808 (1) | 12.70 | 3.500 | 5.000 | 5.00 | 7.00 | 22.00 | 0.19 | 1.70 | 2.50 |
| 22IRM N 60 IC908 (1) | 12.70 | 3.500 | 5.000 | 5.00 | 7.00 | 22.00 | 0.19 | 1.70 | 2.50 |
| 27IL Q 60 IC50M | 15.88 | 5.500 | 6.000 | 4.00 | 4.50 | 27.50 | 0.40 | 1.90 | 2.40 |
| 27IR Q 60 IC250 | 15.88 | 5.500 | 6.000 | 4.00 | 4.50 | 27.50 | 0.40 | 1.90 | 2.40 |
| 27IR Q 60 IC908 | 15.88 | 5.500 | 6.000 | 4.00 | 4.50 | 27.50 | 0.40 | 1.90 | 2.40 |
| 16IL AG 60 IC08 | 9.52 | 0.500 | 3.000 | 8.00 | 48.00 | 16.49 | 0.05 | 1.20 | 1.70 |
- Для системы идентификации пластин см. страница 714
- Техническая информация и подробные данные резания см. на страницах 809-825
- DIN13, ISO 68-1, ISO 965 (1&2) — Внутренний допуск: 6H
- ANSI/ASME B1.1 — Внутренний допуск: 2B
(1) С прессованным ломателем стружки
(2) Минимум шага резьбы (мм)
(3) Максимум шага резьбы (мм)
(4) Минимум витков на дюйм
(5) Максимум витков на дюйм
Держатели см. на страницах: AVC-D-SIR/L (805) • C#-SIR/L (803) • MGSIR/L (156) • PICIN-A-SIR/L (466) • PICIN-MGSIR/L (466) • SIR/L (801)
