РЕЗЬБА

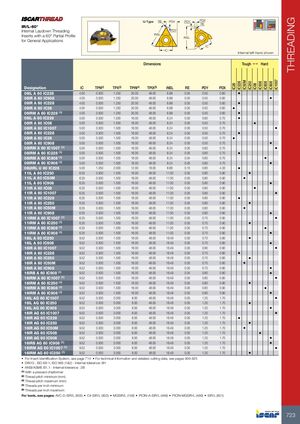

IR/L-60° Укладочная резьба внутренняя
Пластины с частичным профилем 60° для универсального применения
Показана внутренняя резьба левого направления
| Обозначение | IC | TPN(2) | TPX(3) | TPIN(4) | TPIX(5) | INSL | RE | PDY | PDX |
|---|---|---|---|---|---|---|---|---|---|
| 06IL A 60 IC228 | 4.00 | 0.500 | 1.250 | 20.00 | 48.00 | 6.88 | 0.05 | 0.50 | 0.60 |
| 06IR A 60 IC908 | 4.00 | 0.500 | 1.250 | 20.00 | 48.00 | 6.88 | 0.05 | 0.50 | 0.60 |
| 06IR A 60 IC228 | 4.00 | 0.500 | 1.250 | 20.00 | 48.00 | 6.88 | 0.05 | 0.50 | 0.60 |
| 06IR A 60 IC28 | 4.00 | 0.500 | 1.250 | 20.00 | 48.00 | 6.88 | 0.05 | 0.50 | 0.60 |
| 06IRM A 60 IC228 (1) | 4.00 | 0.500 | 1.250 | 20.00 | 48.00 | 6.88 | 0.05 | 0.50 | 0.60 |
| 08IL A 60 IC228 | 5.00 | 0.500 | 1.500 | 16.00 | 48.00 | 8.24 | 0.05 | 0.60 | 0.70 |
| 08IR A 60 IC08 | 5.00 | 0.500 | 1.500 | 16.00 | 48.00 | 8.24 | 0.05 | 0.50 | 0.70 |
| 08IR A 60 IC1007 | 5.00 | 0.500 | 1.500 | 16.00 | 48.00 | 8.24 | 0.05 | 0.50 | 0.70 |
| 08IR A 60 IC228 | 5.00 | 0.500 | 1.500 | 16.00 | 48.00 | 8.24 | 0.05 | 0.50 | 0.70 |
| 08IR A 60 IC28 | 5.00 | 0.500 | 1.500 | 16.00 | 48.00 | 8.24 | 0.05 | 0.50 | 0.70 |
| 08IR A 60 IC908 | 5.00 | 0.500 | 1.500 | 16.00 | 48.00 | 8.24 | 0.05 | 0.50 | 0.70 |
| 08IRM A 60 IC1007 (1) | 5.00 | 0.500 | 1.500 | 16.00 | 48.00 | 8.24 | 0.05 | 0.60 | 0.70 |
| 08IRM A 60 IC228 (1) | 5.00 | 0.500 | 1.500 | 16.00 | 48.00 | 8.24 | 0.05 | 0.60 | 0.70 |
| 08IRM A 60 IC808 (1) | 5.00 | 0.500 | 1.500 | 16.00 | 48.00 | 8.24 | 0.04 | 0.60 | 0.70 |
| 08IRM A 60 IC908 (1) | 5.00 | 0.500 | 1.500 | 16.00 | 48.00 | 8.24 | 0.05 | 0.60 | 0.70 |
| 08UIRL U 60 IC228 | 5.00 | 1.250 | 2.000 | 12.00 | 18.00 | 8.66 | 0.10 | 0.80 | 4.33 |
| 11IL A 60 IC250 | 6.35 | 0.500 | 1.500 | 16.00 | 48.00 | 11.00 | 0.05 | 0.80 | 0.90 |
| 11IL A 60 IC50M | 6.35 | 0.500 | 1.500 | 16.00 | 48.00 | 11.00 | 0.05 | 0.80 | 0.90 |
| 11IL A 60 IC908 | 6.35 | 0.500 | 1.500 | 16.00 | 48.00 | 11.00 | 0.05 | 0.80 | 0.90 |
| 11IR A 60 IC08 | 6.35 | 0.500 | 1.500 | 16.00 | 48.00 | 11.00 | 0.05 | 0.80 | 0.90 |
| 11IR A 60 IC1007 | 6.35 | 0.500 | 1.500 | 16.00 | 48.00 | 11.00 | 0.05 | 0.80 | 0.90 |
| 11IR A 60 IC228 | 6.35 | 0.500 | 1.500 | 16.00 | 48.00 | 11.00 | 0.05 | 0.80 | 0.90 |
| 11IR A 60 IC250 | 6.35 | 0.500 | 1.500 | 16.00 | 48.00 | 11.00 | 0.05 | 0.80 | 0.90 |
| 11IR A 60 IC50M | 6.35 | 0.500 | 1.500 | 16.00 | 48.00 | 11.00 | 0.05 | 0.80 | 0.90 |
| 11IR A 60 IC908 | 6.35 | 0.500 | 1.500 | 16.00 | 48.00 | 11.00 | 0.05 | 0.80 | 0.90 |
| 11IRM A 60 IC1007 (1) | 6.35 | 0.500 | 1.500 | 16.00 | 48.00 | 11.00 | 0.05 | 0.70 | 0.90 |
| 11IRM A 60 IC250 (1) | 6.35 | 0.500 | 1.500 | 16.00 | 48.00 | 11.00 | 0.05 | 0.70 | 0.90 |
| 11IRM A 60 IC808 (1) | 6.35 | 0.500 | 1.500 | 16.00 | 48.00 | 11.00 | 0.05 | 0.70 | 0.90 |
| 11IRM A 60 IC908 (1) | 6.35 | 0.500 | 1.500 | 16.00 | 48.00 | 11.00 | 0.05 | 0.70 | 0.90 |
| 16IL A 60 IC250 | 9.52 | 0.500 | 1.500 | 16.00 | 48.00 | 16.49 | 0.05 | 0.70 | 0.80 |
| 16IL A 60 IC908 | 9.52 | 0.500 | 1.500 | 16.00 | 48.00 | 16.49 | 0.05 | 0.70 | 0.80 |
| 16IR A 60 IC1007 | 9.52 | 0.500 | 1.500 | 16.00 | 48.00 | 16.49 | 0.05 | 0.80 | 0.90 |
| 16IR A 60 IC228 | 9.52 | 0.500 | 1.500 | 16.00 | 48.00 | 16.49 | 0.05 | 0.70 | 0.80 |
| 16IR A 60 IC250 | 9.52 | 0.500 | 1.500 | 16.00 | 48.00 | 16.49 | 0.05 | 0.70 | 0.80 |
| 16IR A 60 IC50M | 9.52 | 0.500 | 1.500 | 16.00 | 48.00 | 16.49 | 0.05 | 0.70 | 0.80 |
| 16IR A 60 IC908 | 9.52 | 0.500 | 1.500 | 16.00 | 48.00 | 16.49 | 0.05 | 0.70 | 0.80 |
| 16IRB A 60 IC908 (1) | 9.52 | 0.500 | 1.500 | 16.00 | 48.00 | 16.49 | 0.04 | 0.80 | 0.80 |
| 16IRM A 60 IC1007 (1) | 9.52 | 0.500 | 1.500 | 16.00 | 48.00 | 16.49 | 0.05 | 0.80 | 0.90 |
| 16IRM A 60 IC250 (1) | 9.52 | 0.500 | 1.500 | 16.00 | 48.00 | 16.49 | 0.05 | 0.80 | 0.90 |
| 16IRM A 60 IC808 (1) | 9.52 | 0.500 | 1.500 | 16.00 | 48.00 | 16.49 | 0.05 | 0.80 | 0.90 |
| 16IRM A 60 IC908 (1) | 9.52 | 0.500 | 1.500 | 16.00 | 48.00 | 16.49 | 0.05 | 0.80 | 0.90 |
| 16IL AG 60 IC1007 | 9.52 | 0.500 | 3.000 | 8.00 | 48.00 | 16.49 | 0.05 | 1.20 | 1.70 |
| 16IL AG 60 IC250 | 9.52 | 0.500 | 3.000 | 8.00 | 48.00 | 16.49 | 0.05 | 1.20 | 1.70 |
| 16IL AG 60 IC908 | 9.52 | 0.500 | 3.000 | 8.00 | 48.00 | 16.49 | 0.05 | 1.20 | 1.70 |
| 16IR AG 60 IC1007 | 9.52 | 0.500 | 3.000 | 8.00 | 48.00 | 16.49 | 0.05 | 1.20 | 1.70 |
| 16IR AG 60 IC228 | 9.52 | 0.500 | 3.000 | 8.00 | 48.00 | 16.49 | 0.05 | 1.20 | 1.70 |
| 16IR AG 60 IC250 | 9.52 | 0.500 | 3.000 | 8.00 | 48.00 | 16.49 | 0.05 | 1.20 | 1.70 |
| 16IR AG 60 IC50M | 9.52 | 0.500 | 3.000 | 8.00 | 48.00 | 16.49 | 0.05 | 1.20 | 1.70 |
| 16IR AG 60 IC508 | 9.52 | 0.500 | 3.000 | 8.00 | 48.00 | 16.49 | 0.05 | 1.20 | 1.70 |
| 16IR AG 60 IC908 | 9.52 | 0.500 | 3.000 | 8.00 | 48.00 | 16.49 | 0.05 | 1.20 | 1.70 |
| 16IRB AG 60 IC908 (1) | 9.52 | 0.500 | 3.000 | 8.00 | 48.00 | 16.49 | 0.05 | 1.20 | 1.70 |
| 16IRM AG 60 IC1007 (1) | 9.52 | 0.500 | 3.000 | 8.00 | 48.00 | 16.49 | 0.05 | 1.20 | 1.70 |
| 16IRM AG 60 IC250 (1) | 9.52 | 0.500 | 3.000 | 8.00 | 48.00 | 16.49 | 0.05 | 1.20 | 1.70 |
- Для системы идентификации пластин см. страница 714
- Техническая информация и подробные данные резания см. на страницах 809-825
- DIN13, ISO 68-1, ISO 965 (1&2) — Внутренний допуск: 6H
- ANSI/ASME B1.1 — Внутренний допуск: 2B
(1) С прессованным ломателем стружки
(2) Минимум шага резьбы (мм)
(3) Максимум шага резьбы (мм)
(4) Минимум витков на дюйм
(5) Максимум витков на дюйм
Держатели см. на страницах: AVC-D-SIR/L (805) • C#-SIR/L (803) • MGSIR/L (156) • PICIN-A-SIR/L (466) • PICIN-MGSIR/L (466) • SIR/L (801)
