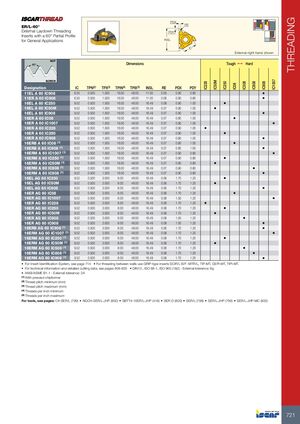

РЕЗЬБА
ER/L-60° Укладочная резьба наружная
Пластины с частичным профилем 60° для универсального применения
Показана наружная резьба правого направления
| Обозначение | IC | TPN(2) | TPX(3) | TPIN(4) | TPIX(5) | INSL | RE | PDX | PDY |
|---|---|---|---|---|---|---|---|---|---|
| 11EL A 60 IC908 | 6.35 | 0.500 | 1.500 | 16.00 | 48.00 | 11.00 | 0.05 | 0.90 | 0.80 |
| 11ER A 60 IC908 | 6.35 | 0.500 | 1.500 | 16.00 | 48.00 | 11.00 | 0.06 | 0.90 | 0.80 |
| 16EL A 60 IC250 | 9.52 | 0.500 | 1.500 | 16.00 | 48.00 | 16.49 | 0.08 | 0.90 | 1.00 |
| 16EL A 60 IC50M | 9.52 | 0.500 | 1.500 | 16.00 | 48.00 | 16.49 | 0.07 | 0.90 | 1.00 |
| 16EL A 60 IC908 | 9.52 | 0.500 | 1.500 | 16.00 | 48.00 | 16.49 | 0.07 | 0.90 | 1.00 |
| 16ER A 60 IC08 | 9.52 | 0.500 | 1.500 | 16.00 | 48.00 | 16.49 | 0.07 | 0.80 | 1.00 |
| 16ER A 60 IC1007 | 9.52 | 0.500 | 1.500 | 16.00 | 48.00 | 16.49 | 0.07 | 0.90 | 1.00 |
| 16ER A 60 IC228 | 9.52 | 0.500 | 1.500 | 16.00 | 48.00 | 16.49 | 0.07 | 0.90 | 1.00 |
| 16ER A 60 IC250 | 9.52 | 0.500 | 1.500 | 16.00 | 48.00 | 16.49 | 0.07 | 0.90 | 1.00 |
| 16ER A 60 IC908 | 9.52 | 0.500 | 1.500 | 16.00 | 48.00 | 16.49 | 0.07 | 0.80 | 1.00 |
| 16ERB A 60 IC08 (1) | 9.52 | 0.500 | 1.500 | 16.00 | 48.00 | 16.49 | 0.07 | 0.80 | 1.00 |
| 16ERB A 60 IC908 (1) | 9.52 | 0.500 | 1.500 | 16.00 | 48.00 | 16.49 | 0.07 | 0.80 | 1.00 |
| 16ERM A 60 IC1007 (1) | 9.52 | 0.500 | 1.500 | 16.00 | 48.00 | 16.49 | 0.07 | 0.90 | 0.80 |
| 16ERM A 60 IC250 (1) | 9.52 | 0.500 | 1.500 | 16.00 | 48.00 | 16.49 | 0.07 | 0.90 | 0.80 |
| 16ERM A 60 IC50M (1) | 9.52 | 0.500 | 1.500 | 16.00 | 48.00 | 16.49 | 0.07 | 0.90 | 0.80 |
| 16ERM A 60 IC808 (1) | 9.52 | 0.500 | 1.500 | 16.00 | 48.00 | 16.49 | 0.07 | 0.90 | 0.80 |
| 16ERM A 60 IC908 (1) | 9.52 | 0.500 | 1.500 | 16.00 | 48.00 | 16.49 | 0.07 | 0.90 | 0.80 |
| 16EL AG 60 IC250 | 9.52 | 0.500 | 3.000 | 8.00 | 48.00 | 16.49 | 0.06 | 1.70 | 1.20 |
| 16EL AG 60 IC50M | 9.52 | 0.500 | 3.000 | 8.00 | 48.00 | 16.49 | 0.06 | 1.70 | 1.20 |
| 16EL AG 60 IC908 | 9.52 | 0.500 | 3.000 | 8.00 | 48.00 | 16.49 | 0.06 | 1.70 | 1.20 |
| 16ER AG 60 IC08 | 9.52 | 0.500 | 3.000 | 8.00 | 48.00 | 16.49 | 0.06 | 1.70 | 1.20 |
| 16ER AG 60 IC1007 | 9.52 | 0.500 | 3.000 | 8.00 | 48.00 | 16.49 | 0.08 | 1.50 | 1.20 |
| 16ER AG 60 IC228 | 9.52 | 0.500 | 3.000 | 8.00 | 48.00 | 16.49 | 0.08 | 1.70 | 1.20 |
| 16ER AG 60 IC250 | 9.52 | 0.500 | 3.000 | 8.00 | 48.00 | 16.49 | 0.08 | 1.70 | 1.20 |
| 16ER AG 60 IC50M | 9.52 | 0.500 | 3.000 | 8.00 | 48.00 | 16.49 | 0.08 | 1.70 | 1.20 |
| 16ER AG 60 IC508 | 9.52 | 0.500 | 3.000 | 8.00 | 48.00 | 16.49 | 0.08 | 1.50 | 1.20 |
| 16ER AG 60 IC908 | 9.52 | 0.500 | 3.000 | 8.00 | 48.00 | 16.49 | 0.08 | 1.50 | 1.20 |
| 16ERB AG 60 IC908 (1) | 9.52 | 0.500 | 3.000 | 8.00 | 48.00 | 16.49 | 0.06 | 1.70 | 1.20 |
| 16ERM AG 60 IC1007 (1) | 9.52 | 0.500 | 3.000 | 8.00 | 48.00 | 16.49 | 0.08 | 1.70 | 1.20 |
| 16ERM AG 60 IC250 (1) | 9.52 | 0.500 | 3.000 | 8.00 | 48.00 | 16.49 | 0.08 | 1.70 | 1.20 |
| 16ERM AG 60 IC50M (1) | 9.52 | 0.500 | 3.000 | 8.00 | 48.00 | 16.49 | 0.08 | 1.70 | 1.20 |
| 16ERM AG 60 IC508 (1) | 9.52 | 0.500 | 3.000 | 8.00 | 48.00 | 16.49 | 0.08 | 1.70 | 1.20 |
| 16ERM AG 60 IC808 (1) | 9.52 | 0.500 | 3.000 | 8.00 | 48.00 | 16.49 | 0.08 | 1.70 | 1.20 |
| 16ERM AG 60 IC908 (1) | 9.52 | 0.500 | 3.000 | 8.00 | 48.00 | 16.49 | 0.08 | 1.70 | 1.20 |
- Для системы идентификации пластин см. страница 714
- Для нарезания резьбы между стенками используйте пластины типа GRIP SCIR/L B/F -MTR/L, TIP-MT, GEPI-MT, TIPI-MT
- Техническая информация и подробные данные резания см. на страницах 809-825
- DIN13, ISO 68-1, ISO 965 (1&2) — Наружный допуск: 6g
- ANSI/ASME B1.1 — Наружный допуск: 2A
(1) С прессованным ломателем стружки
(2) Минимум шага резьбы (мм)
(3) Максимум шага резьбы (мм)
(4) Минимум витков на дюйм
(5) Максимум витков на дюйм
Держатели см. на страницах: C#-SER/L (799) • NQCH-SER/L-JHP (800) • SBTT#-16ER/L-JHP (418) • SER-D (800) • SER/L (798) • SER/L-JHP (799) • SER/L-JHP-MC (800)
