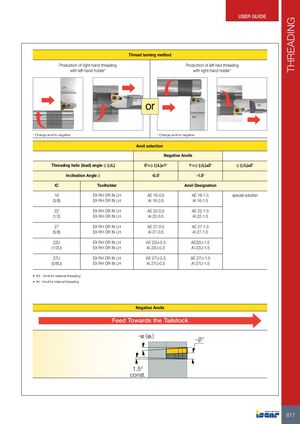

Нарезание правой резьбы державкой LH* / Нарезание левой резьбы державкой RH*
*Изменить державку на отрицательную
Выбор державки
| Угол витка (подачи) резьбы φ (φL) | 0° < φ (φL) ≤ 1° | 1° < φ (φL) ≤ 2° | φ (φL) ≥ 2° | |
|---|---|---|---|---|
| Угол наклона β | Отрицательные державки | |||
| −0.5° | −1.5° | |||
| IC (размер) | Держатель инструмента | Обозначение державки | ||
| 16 (3/8) | EX RH OR IN LH | AE 16−0.5 | AE 16−1.5 | специальное решение |
| EX RH OR IN LH | AI 16−0.5 | AI 16−1.5 | ||
| 22 (1/2) | EX RH OR IN LH | AE 22−0.5 | AE 22−1.5 | |
| EX RH OR IN LH | AI 22−0.5 | AI 22−1.5 | ||
| 27 (5/8) | EX RH OR IN LH | AE 27−0.5 | AE 27−1.5 | |
| EX RH OR IN LH | AI 27−0.5 | AI 27−1.5 | ||
| 22U (1/2U) | EX RH OR IN LH | AE 22U−0.5 | AE 22U−1.5 | |
| EX RH OR IN LH | AI 22U−0.5 | AI 22U−1.5 | ||
| 27U (5/8U) | EX RH OR IN LH | AE 27U−0.5 | AE 27U−1.5 | |
| EX RH OR IN LH | AI 27U−0.5 | AI 27U−1.5 | ||
EX — Державка для наружной резьбы
IN — Державка для внутренней резьбы
Отрицательные державки
Подача в направлении задней бабки с углом витка −φ (φL) и углом наклона −β°, причем угол наклона составляет 1.5° const.
