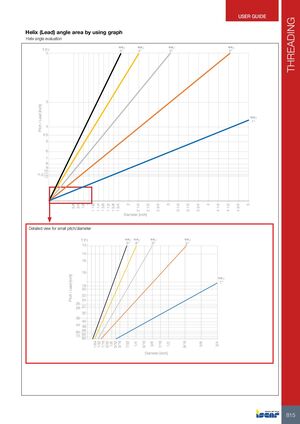

Область угла витка (подачи) по графику
Оценка угла витка
График показывает зависимость угла витка (φ или φL) в дюймовой системе (TPI — витков на дюйм). По графику можно определить углы 5°, 4°, 3°, 2° и 1°.
Основной график с шкалой диаметра от 5/8 до 5 дюймов и шагом/подачей (TPI) от 2 до 12.
Детальный вид для малых шагов/диаметров показывает диапазон диаметра от 1/64 до 3/4 дюйма и TPI от 13 до 80 с углами витка φ(φL) 5°, 4°, 3°, 2° и 1°.
