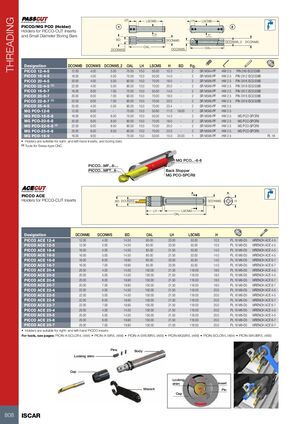

PICCO/MG PCO — Державки для резцов PICCO-CUT и расточных прутков малого диаметра
| Обозначение | DCONMS | DCONWS | DCONWS_2 | OAL | LH | LSCMS | H | BD | Рис. | Компоненты | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PICCO 12-4-5 | 12.00 | 4.00 | 5.00 | 75.00 | 10.0 | 55.00 | 10.3 | — | 2 | SR M5X4-PF | HW 2.5 | PIN 2X8 ISO2338B |
| PICCO 16-4-5 | 16.00 | 4.00 | 5.00 | 75.00 | 10.0 | 55.00 | 14.0 | — | 2 | SR M5X6-PF | HW 2.5 | PIN 2X12 ISO2338B |
| PICCO 20-4-5 | 20.00 | 4.00 | 5.00 | 90.00 | 10.0 | 70.00 | 18.0 | — | 2 | SR M5X6-PF | HW 2.5 | PIN 3X16 ISO2338B |
| PICCO 22-4-5 (1) | 22.00 | 4.00 | 5.00 | 90.00 | 10.0 | 70.00 | 20.0 | — | 2 | SR M5X6-PF | HW 2.5 | PIN 3X18 ISO2338B |
| PICCO 16-6-7 | 16.00 | 6.00 | 7.00 | 75.00 | 10.0 | 55.00 | 14.0 | — | 2 | SR M5X6-PF | HW 2.5 | PIN 3X12 ISO2338B |
| PICCO 20-6-7 | 20.00 | 6.00 | 7.00 | 90.00 | 10.0 | 70.00 | 18.0 | — | 2 | SR M5X6-PF | HW 2.5 | PIN 3X16 ISO2338B |
| PICCO 22-6-7 (1) | 22.00 | 6.00 | 7.00 | 90.00 | 10.0 | 70.00 | 20.0 | — | 2 | SR M5X6-PF | HW 2.5 | PIN 3X18 ISO2338B |
| PICCO 25-4-5 | 25.00 | 4.00 | 5.00 | 90.00 | 10.0 | 70.00 | 23.4 | — | 2 | SR M5X6-PF | HW 2.5 | |
| MG PCO-12-6 | 12.00 | 6.00 | — | 75.00 | 15.0 | 50.80 | 11.0 | 18.00 | 1 | SR M5X6-PF | HW 2.5 | |
| MG PCO-16-6-8 | 16.00 | 6.00 | 8.00 | 75.00 | 10.0 | 55.00 | 14.0 | — | 2 | SR M5X6-PF | HW 2.5 | MG PCO-SPCR8 |
| MG PCO-20-6-8 | 20.00 | 6.00 | 8.00 | 90.00 | 10.0 | 70.00 | 18.0 | — | 2 | SR M5X6-PF | HW 2.5 | MG PCO-SPCR8 |
| MG PCO-22-6-8 (1) | 22.00 | 6.00 | 8.00 | 90.00 | 10.0 | 70.00 | 20.0 | — | 2 | SR M5X6-PF | HW 2.5 | MG PCO-SPCR8 |
| MG PCO-25-6-8 | 25.00 | 6.00 | 8.00 | 90.00 | 10.0 | 70.00 | 23.0 | — | 2 | SR M5X6-PF | HW 2.5 | MG PCO-SPCR8 |
| MG PCO-16-9 | 16.00 | 9.00 | — | 75.00 | 15.0 | 53.00 | 15.0 | 20.00 | 1 | SR M5X6-PF | HW 2.5 | PL 16 |
Державки подходят для право- и лево-вращающихся резцов и расточных прутков
(1) Инструменты для ЧПУ автоматических станков швейцарского типа
PICCO ACE — Державки для резцов PICCO-CUT
| Обозначение | DCONMS | DCONWS | BD | OAL | LH | LSCMS | H | Компоненты | |
|---|---|---|---|---|---|---|---|---|---|
| PICCO ACE 12-4 | 12.00 | 4.00 | 14.50 | 85.00 | 23.00 | 53.00 | 10.3 | PL 16 M6-D5 | WRENCH ACE 4-5 |
| PICCO ACE 12-5 | 12.00 | 5.00 | 14.50 | 85.00 | 23.00 | 53.00 | 10.3 | PL 16 M6-D5 | WRENCH ACE 4-5 |
| PICCO ACE 16-4 | 16.00 | 4.00 | 14.50 | 85.00 | 21.50 | 53.50 | 14.0 | PL 16 M6-D5 | WRENCH ACE 4-5 |
| PICCO ACE 16-5 | 16.00 | 5.00 | 14.50 | 85.00 | 21.50 | 53.00 | 14.0 | PL 16 M6-D5 | WRENCH ACE 4-5 |
| PICCO ACE 16-6 | 16.00 | 6.00 | 19.90 | 85.00 | 23.00 | 53.50 | 14.0 | PL 16 M6-D5 | WRENCH ACE 6-7 |
| PICCO ACE 16-7 | 16.00 | 7.00 | 19.90 | 85.00 | 23.00 | 53.50 | 14.0 | PL 16 M6-D5 | WRENCH ACE 6-7 |
| PICCO ACE 20-4 | 20.00 | 4.00 | 14.50 | 150.00 | 21.50 | 118.00 | 18.0 | PL 16 M6-D5 | WRENCH ACE 4-5 |
| PICCO ACE 20-5 | 20.00 | 5.00 | 14.50 | 150.00 | 21.50 | 118.00 | 18.0 | PL 16 M6-D5 | WRENCH ACE 4-5 |
| PICCO ACE 20-6 | 20.00 | 6.00 | 19.90 | 150.00 | 21.50 | 118.00 | 18.0 | PL 16 M6-D5 | WRENCH ACE 6-7 |
| PICCO ACE 20-7 | 20.00 | 7.00 | 19.90 | 150.00 | 21.50 | 118.00 | 18.0 | PL 16 M6-D5 | WRENCH ACE 6-7 |
| PICCO ACE 22-4 | 22.00 | 4.00 | 14.50 | 150.00 | 21.50 | 118.00 | 20.0 | PL 16 M6-D5 | WRENCH ACE 4-5 |
| PICCO ACE 22-5 | 22.00 | 5.00 | 14.50 | 150.00 | 21.50 | 118.00 | 20.0 | PL 16 M6-D5 | WRENCH ACE 4-5 |
| PICCO ACE 22-6 | 22.00 | 6.00 | 19.90 | 150.00 | 21.50 | 118.00 | 20.0 | PL 16 M6-D5 | WRENCH ACE 6-7 |
| PICCO ACE 22-7 | 22.00 | 7.00 | 19.90 | 150.00 | 21.50 | 118.00 | 20.0 | PL 16 M6-D5 | WRENCH ACE 6-7 |
| PICCO ACE 25-4 | 25.00 | 4.00 | 14.50 | 150.00 | 21.50 | 118.00 | 20.0 | PL 16 M6-D5 | WRENCH ACE 4-5 |
| PICCO ACE 25-5 | 25.00 | 5.00 | 14.50 | 150.00 | 21.50 | 118.00 | 20.0 | PL 16 M6-D5 | WRENCH ACE 4-5 |
| PICCO ACE 25-6 | 25.00 | 6.00 | 19.90 | 150.00 | 21.50 | 118.00 | 20.0 | PL 16 M6-D5 | WRENCH ACE 6-7 |
| PICCO ACE 25-7 | 25.00 | 7.00 | 19.90 | 150.00 | 21.50 | 118.00 | 20.0 | PL 16 M6-D5 | WRENCH ACE 6-7 |
Державки подходят для право- и лево-вращающихся резцов PICCO
Инструменты см. на страницах: PICIN-A-SCLCR/L (464) • PICIN-A-SIR/L (466) • PICIN-A-SWUBR/L (465) • PICIN-MGSIR/L (466) • PICIN-SCLCR/L (464) • PICIN-SWUBR/L (465)
