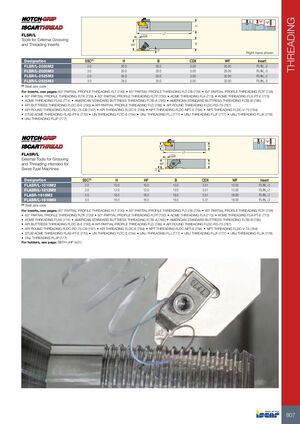

FLSR/L — Инструменты для внешних канавок и нарезания резьб
| Обозначение | SSC(1) | H | B | CDX | WF | Резец |
|---|---|---|---|---|---|---|
| FLSR/L-2020M2 | 2.0 | 20.0 | 20.0 | 3.00 | 25.00 | FL/IN_-2 |
| FLSR/L-2020M3 | 3.0 | 20.0 | 20.0 | 5.00 | 25.00 | FL/IN_-3 |
| FLSR/L-2525M2 | 2.0 | 25.0 | 25.0 | 3.00 | 32.00 | FL/IN_-2 |
| FLSR/L-2525M3 | 3.0 | 25.0 | 25.0 | 5.00 | 32.00 | FL/IN_-3 |
(1) Код размера посадки
Резцы см. на страницах: 60° PARTIAL PROFILE THREADING FLT (730) • 60° PARTIAL PROFILE THREADING FLT-CB (729) • 60° PARTIAL PROFILE THREADING FLTF (728) • 60° PARTIAL PROFILE THREADING FLTK (729) • 60° PARTIAL PROFILE THREADING FLTP (730) • ACME THREADING FLA (773) • ACME THREADING FLA-PT-E (773) • ACME THREADING FLAS (774) • AMERICAN STANDARD BUTTRESS THREADING FLTB-A (785) • AMERICAN STANDARD BUTTRESS THREADING FLTB-B (785) • API BUTTRESS THREADING FLDC-B-E (790) • API PARTIAL PROFILE THREADING FLD (789) • API ROUND THREADING FLDC-RD-75 (787) • API ROUND THREADING FLDC-RD-75-CB (787) • API THREADING FLDC-E (789) • NPT THREADING FLDC-NPT-E (764) • NPT THREADING FLDC-V-75 (764) • STUB ACME THREADING FLAS-PT-E (770) • UN THREADING FLTC-E (754) • UNJ THREADING FLJ (777) • UNJ THREADING FLJF (777) • UNJ THREADING FLJK (778) • UNJ THREADING FLJP (777)
FLASR/L — Внешние инструменты для нарезания канавок и резьб для автоматических токарных станков швейцарского типа
| Обозначение | SSC(1) | H | HF | B | CDX | WF | Резец |
|---|---|---|---|---|---|---|---|
| FLASR/L-1010M2 | 2.0 | 10.0 | 10.0 | 10.0 | 3.51 | 10.00 | FL/IN_-2 |
| FLASR/L-1212M2 | 2.0 | 12.0 | 12.0 | 12.0 | 3.51 | 12.00 | FL/IN_-2 |
| FLASR-1616M2 | 2.0 | 16.0 | 16.0 | 16.0 | 3.51 | 16.00 | FL/IN_-2 |
| FLASR/L-1616M3 | 3.0 | 16.0 | 16.0 | 16.0 | 5.31 | 16.00 | FL/IN_-3 |
(1) Код размера посадки
Резцы см. на страницах: 60° PARTIAL PROFILE THREADING FLT (730) • 60° PARTIAL PROFILE THREADING FLT-CB (729) • 60° PARTIAL PROFILE THREADING FLTF (728) • 60° PARTIAL PROFILE THREADING FLTK (729) • 60° PARTIAL PROFILE THREADING FLTP (730) • ACME THREADING FLA (773) • ACME THREADING FLA-PT-E (773) • ACME THREADING FLAS (774) • AMERICAN STANDARD BUTTRESS THREADING FLTB-A (785) • AMERICAN STANDARD BUTTRESS THREADING FLTB-B (785) • API BUTTRESS THREADING FLDC-B-E (790) • API PARTIAL PROFILE THREADING FLD (789) • API ROUND THREADING FLDC-RD-75 (787) • API ROUND THREADING FLDC-RD-75-CB (787) • API THREADING FLDC-E (789) • NPT THREADING FLDC-NPT-E (764) • NPT THREADING FLDC-V-75 (764) • STUB ACME THREADING FLAS-PT-E (770) • UN THREADING FLTC-E (754) • UNJ THREADING FLJ (777) • UNJ THREADING FLJF (777) • UNJ THREADING FLJK (778) • UNJ THREADING FLJP (777)
Державки см. на странице: SBTH-JHP (421)
