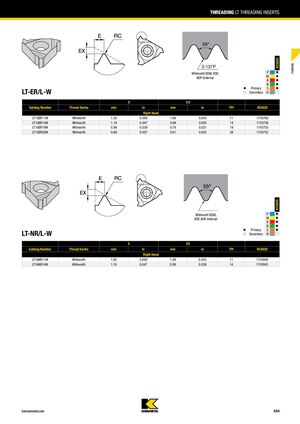

Резьбовые пластины LT
Витворт BSW, BSF, BSP-Внешняя резьба
| Номер каталога | Серия резьбы | мм | дюйм | мм | дюйм | Витки/дюйм | KC5025 |
|---|---|---|---|---|---|---|---|
| Правосторонняя резьба | |||||||
| LT16ER11W | Витворт | 1.50 | 0.059 | 1.09 | 0.043 | 11 | 1743760 |
| LT16ER14W | Витворт | 1.19 | 0.047 | 0.99 | 0.039 | 14 | 1743758 |
| LT16ER19W | Витворт | 0.99 | 0.039 | 0.79 | 0.031 | 19 | 1743755 |
| LT16ER28W | Витворт | 0.69 | 0.027 | 0.61 | 0.024 | 28 | 1743752 |
Витворт BSW, BSF, BSP-Внутренняя резьба
| Номер каталога | Серия резьбы | мм | дюйм | мм | дюйм | Витки/дюйм | KC5025 |
|---|---|---|---|---|---|---|---|
| Правосторонняя резьба | |||||||
| LT16NR11W | Витворт | 1.50 | 0.059 | 1.09 | 0.043 | 11 | 1743945 |
| LT16NR14W | Витворт | 1.19 | 0.047 | 0.99 | 0.039 | 14 | 1743943 |
