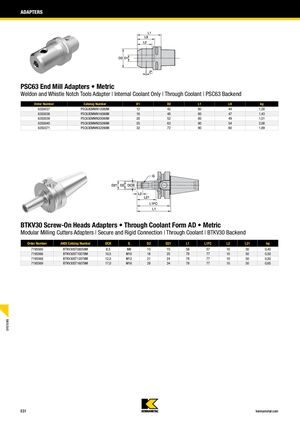

Адаптеры для концевых фрез PSC63 • Метрические
Адаптер для инструмента Weldon и Whistle Notch | Только внутренняя подача СОЖ | Со сквозной подачей СОЖ | Хвостовик PSC63
| Номер заказа | Номер каталога | D1 | D2 | L1 | L9 | кг |
|---|---|---|---|---|---|---|
| 6350037 | PSC63EMWN12080M | 12 | 42 | 80 | 44 | 1,28 |
| 6350038 | PSC63EMWN16080M | 16 | 48 | 80 | 47 | 1,43 |
| 6350039 | PSC63EMWN20080M | 20 | 52 | 80 | 49 | 1,51 |
| 6350040 | PSC63EMWN25090M | 25 | 63 | 90 | 54 | 2,08 |
| 6350371 | PSC63EMWN32090M | 32 | 72 | 90 | 60 | 1,89 |
Адаптеры для съемных головок BTKV30 • Форма AD со сквозной подачей СОЖ • Метрические
Адаптеры для модульных фрез | Надежное и жесткое соединение | Со сквозной подачей СОЖ | Хвостовик BTKV30
| Номер заказа | Номер каталога ANSI | DCB | G | D2 | D21 | L1 | L1FC | L2 | L21 | кг |
|---|---|---|---|---|---|---|---|---|---|---|
| 7195565 | BTKV30ST08058M | 8,5 | M8 | 13 | 15 | 58 | 57 | 10 | 30 | 0,40 |
| 7195566 | BTKV30ST10078M | 10,5 | M10 | 18 | 25 | 78 | 77 | 10 | 50 | 0,50 |
| 7195568 | BTKV30ST12078M | 12,5 | M12 | 21 | 24 | 78 | 77 | 10 | 50 | 0,50 |
| 7195569 | BTKV30ST16078M | 17,0 | M16 | 29 | 34 | 78 | 77 | 10 | 50 | 0,65 |
