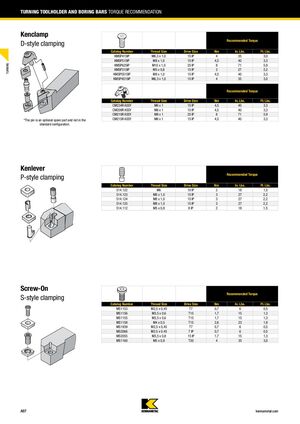

TURNING TOOLHOLDER AND BORING BARS TORQUE RECOMMENDATION Kenclamp Recommended Torque D-style clamping Catalog Number Thread Size Drive Size Nm In. Lbs. Ft. Lbs. KMSP415IP M6,3 x 1,0 15 IP 4 35 3,0 KMSP515IP M8 x 1,0 15 IP 4,5 40 3,3 TURNING KMSP625IP M10 x 1,0 25 IP 8 71 5,9 * KMSP315IP M5 x 0,8 15 IP 3 27 2,2 KMSP5S15IP M8 x 1,0 15 IP 4,5 40 3,3 KMSP4S15IP M6,3 x 1,0 15 IP 4 35 3,0 Recommended Torque Catalog Number Thread Size Drive Size Nm In. Lbs. Ft. Lbs. CM234R ASSY M6 x 1 15 IP 4,5 40 3,3 CM209R ASSY M6 x 1 15 IP 4,5 40 3,3 CM210R ASSY M8 x 1 25 IP 8 71 5,9 *The pin is an optional spare part and not in the CM215R ASSY M6 x 1 15 IP 4,5 40 3,3 standard configuration. Kenlever Recommended Torque P-style clamping Catalog Number Thread Size Drive Size Nm In. Lbs. Ft. Lbs. 514.122 M6 10 IP 2 18 1,5 514.123 M8 x 1,0 15 IP 3 27 2,2 514.124 M8 x 1,0 15 IP 3 27 2,2 514.125 M8 x 1,0 15 IP 3 27 2,2 514.112 M5 x 0,8 8 IP 2 18 1,5 Screw-On Recommended Torque S-style clamping Catalog Number Thread Size Drive Size Nm In. Lbs. Ft. Lbs. MS1153 M2,5 x 0,45 T7 0,7 6 0,5 MS1156 M3,5 x 0,6 T15 1,7 15 1,3 MS1155 M3,5 x 0,6 T15 1,7 15 1,3 MS1158 M4 x 0,5 T15 2,6 23 1,9 MS1939 M2,5 x 0,45 T7 0,7 6 0,5 MS2066 M2.5 x 0.45 7 IP 0,7 6 0,5 MS2055 M3,5 x 0,8 15 IP 1,7 15 1,3 MS1160 M5 x 0,8 T20 4 35 3,0 A97 kennametal.com
