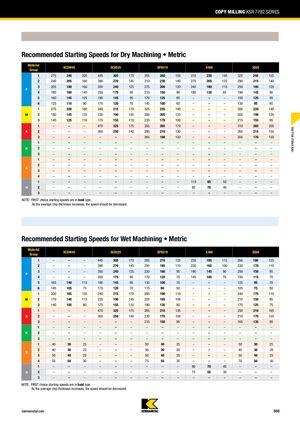

Рекомендуемые начальные скорости резания при сухом фрезеровании • Метрическая система
| Группа материала | KCSM40 | SC6525 | SP6519 | X400 | X500 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| P 1 | 275 | 240 | 205 | 445 | 305 | 170 | 355 | 260 | 155 | 310 | 230 | 145 | 325 | 240 | 155 |
| P 2 | 240 | 205 | 160 | 390 | 270 | 145 | 310 | 230 | 140 | 275 | 205 | 125 | 290 | 215 | 140 |
| P 3 | 205 | 180 | 160 | 350 | 240 | 125 | 275 | 200 | 120 | 240 | 180 | 115 | 250 | 185 | 120 |
| P 4 | 180 | 160 | 145 | 250 | 175 | 95 | 210 | 150 | 90 | 180 | 130 | 85 | 190 | 145 | 90 |
| P 5 | 160 | 145 | 125 | 190 | 145 | 95 | 170 | 125 | 85 | – | – | – | 155 | 120 | 85 |
| P 6 | 125 | 110 | 90 | 170 | 120 | 70 | 145 | 100 | 60 | – | – | – | 130 | 95 | 60 |
| M 1 | 275 | 220 | 180 | 240 | 215 | 170 | 325 | 235 | 140 | – | – | – | 300 | 220 | 140 |
| M 2 | 180 | 145 | 125 | 230 | 190 | 145 | 280 | 205 | 125 | – | – | – | 265 | 190 | 120 |
| M 3 | 145 | 125 | 110 | 175 | 155 | 110 | 235 | 170 | 100 | – | – | – | 215 | 155 | 95 |
| K 1 | – | – | – | 470 | 325 | 175 | 355 | 265 | 170 | – | – | – | 310 | 265 | 205 |
| K 2 | – | – | – | 365 | 250 | 140 | 290 | 210 | 130 | – | – | – | 265 | 215 | 155 |
| K 3 | – | – | – | – | – | – | 265 | 190 | 120 | – | – | – | 205 | 170 | 120 |
| N 1 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| N 2 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| N 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| S 1 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| S 2 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| S 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| S 4 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| H 1 | – | – | – | – | – | – | – | – | – | 115 | 85 | 55 | – | – | – |
| H 2 | – | – | – | – | – | – | – | – | – | 95 | 70 | 40 | – | – | – |
| H 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
Рекомендуемые начальные скорости резания при мокром фрезеровании • Метрическая система
| Группа материала | KCSM40 | SC6525 | SP6519 | X400 | X500 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| P 1 | – | – | – | 445 | 305 | 170 | 285 | 210 | 125 | 250 | 185 | 115 | 260 | 190 | 125 |
| P 2 | – | – | – | 390 | 270 | 145 | 250 | 185 | 110 | 220 | 165 | 100 | 230 | 170 | 110 |
| P 3 | – | – | – | 350 | 240 | 125 | 220 | 160 | 95 | 190 | 145 | 90 | 200 | 150 | 95 |
| P 4 | – | – | – | 250 | 175 | 95 | 170 | 120 | 70 | 145 | 105 | 70 | 150 | 115 | 70 |
| P 5 | 165 | 140 | 115 | 190 | 145 | 95 | 135 | 100 | 70 | – | – | – | 125 | 95 | 70 |
| P 6 | 145 | 105 | 75 | 170 | 120 | 70 | 115 | 80 | 50 | – | – | – | 105 | 75 | 50 |
| M 1 | 200 | 165 | 135 | 240 | 215 | 170 | 260 | 190 | 110 | – | – | – | 240 | 175 | 110 |
| M 2 | 170 | 140 | 115 | 230 | 190 | 145 | 225 | 165 | 100 | – | – | – | 210 | 150 | 95 |
| M 3 | 140 | 105 | 80 | 175 | 155 | 110 | 190 | 135 | 80 | – | – | – | 170 | 125 | 75 |
| K 1 | – | – | – | 470 | 325 | 175 | 285 | 210 | 135 | – | – | – | 250 | 210 | 165 |
| K 2 | – | – | – | 365 | 250 | 140 | 230 | 170 | 105 | – | – | – | 210 | 170 | 125 |
| K 3 | – | – | – | – | – | – | 210 | 150 | 95 | – | – | – | 165 | 135 | 95 |
| N 1 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| N 2 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| N 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| S 1 | 40 | 30 | 25 | – | – | – | 50 | 40 | 25 | – | – | – | 50 | 30 | 25 |
| S 2 | 40 | 30 | 25 | – | – | – | 50 | 30 | 20 | – | – | – | 45 | 30 | 20 |
| S 3 | 50 | 40 | 25 | – | – | – | 50 | 40 | 25 | – | – | – | 50 | 40 | 25 |
| S 4 | 55 | 50 | 30 | – | – | – | 75 | 55 | 35 | – | – | – | 70 | 50 | 30 |
| H 1 | – | – | – | – | – | – | – | – | – | 90 | 70 | 45 | – | – | – |
| H 2 | – | – | – | – | – | – | – | – | – | 75 | 55 | 30 | – | – | – |
| H 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
Примечание: Наилучшие рекомендуемые скорости выделены жирным типом. По мере увеличения средней толщины стружки скорость должна быть снижена.
