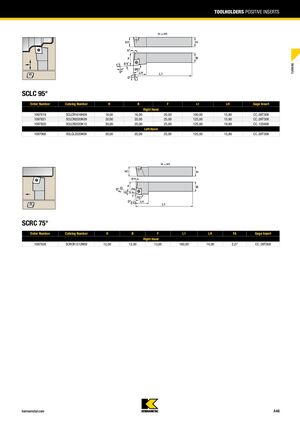

Державки резцов с положительными пластинами
SCLC 95°
| Номер заказа | Каталожный номер | H | B | F | L1 | LH | Калибровочная пластина |
|---|---|---|---|---|---|---|---|
| Правая рука | |||||||
| 1097819 | SCLCR1616H09 | 16,00 | 16,00 | 20,00 | 100,00 | 15,80 | CC..09T308 |
| 1097821 | SCLCR2020K09 | 20,00 | 20,00 | 25,00 | 125,00 | 15,80 | CC..09T308 |
| 1097820 | SCLCR2020K12 | 20,00 | 20,00 | 25,00 | 125,00 | 19,80 | CC..120408 |
| Левая рука | |||||||
| 1097966 | SCLCL2020K09 | 20,00 | 20,00 | 25,00 | 125,00 | 15,80 | CC..09T308 |
SCRC 75°
| Номер заказа | Каталожный номер | H | B | F | L1 | LH | FA | Калибровочная пластина |
|---|---|---|---|---|---|---|---|---|
| Правая рука | ||||||||
| 1097828 | SCRCR1212N09 | 12,00 | 12,00 | 13,00 | 160,00 | 14,00 | 2,27 | CC..09T308 |
