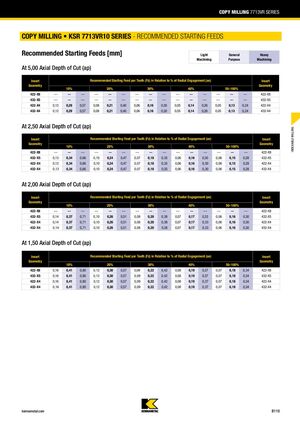

COPY MILLING 7713VR SERIES COPY MILLING • KSR 7713VR10 SERIES - RECOMMENDED STARTING FEEDS Recommended Starting Feeds [mm] Light General Heavy Machining Purpose Machining At 5,00 Axial Depth of Cut (ap) Insert Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) Insert Geometry Geometry 10% 20% 30% 40% 50–100% 422-X8 — — — — — — — — — — — — — — — 422-X8 432-X5 — — — — — — — — — — — — — — — 432-X5 422-X4 0,12 0,29 0,57 0,08 0,21 0,40 0,06 0,16 0,30 0,05 0,14 0,26 0,05 0,13 0,24 422-X4 432-X4 0,12 0,29 0,57 0,08 0,21 0,40 0,06 0,16 0,30 0,05 0,14 0,26 0,05 0,13 0,24 432-X4 At 2,50 Axial Depth of Cut (ap) INDEXABLE MILLING Insert Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) Insert Geometry Geometry 10% 20% 30% 40% 50–100% 422-X8 — — — — — — — — — — — — — — — 422-X8 432-X5 0,13 0,34 0,66 0,10 0,24 0,47 0,07 0,18 0,35 0,06 0,16 0,30 0,06 0,15 0,28 432-X5 422-X4 0,13 0,34 0,66 0,10 0,24 0,47 0,07 0,18 0,35 0,06 0,16 0,30 0,06 0,15 0,28 422-X4 432-X4 0,13 0,34 0,66 0,10 0,24 0,47 0,07 0,18 0,35 0,06 0,16 0,30 0,06 0,15 0,28 432-X4 At 2,00 Axial Depth of Cut (ap) Insert Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) Insert Geometry Geometry 10% 20% 30% 40% 50–100% 422-X8 — — — — — — — — — — — — — — — 422-X8 432-X5 0,14 0,37 0,71 0,10 0,26 0,51 0,08 0,20 0,38 0,07 0,17 0,33 0,06 0,16 0,30 432-X5 422-X4 0,14 0,37 0,71 0,10 0,26 0,51 0,08 0,20 0,38 0,07 0,17 0,33 0,06 0,16 0,30 422-X4 432-X4 0,14 0,37 0,71 0,10 0,26 0,51 0,08 0,20 0,38 0,07 0,17 0,33 0,06 0,16 0,30 432-X4 At 1,50 Axial Depth of Cut (ap) Insert Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) Insert Geometry Geometry 10% 20% 30% 40% 50–100% 422-X8 0,16 0,41 0,80 0,12 0,30 0,57 0,09 0,22 0,42 0,08 0,19 0,37 0,07 0,18 0,34 422-X8 432-X5 0,16 0,41 0,80 0,12 0,30 0,57 0,09 0,22 0,42 0,08 0,19 0,37 0,07 0,18 0,34 432-X5 422-X4 0,16 0,41 0,80 0,12 0,30 0,57 0,09 0,22 0,42 0,08 0,19 0,37 0,07 0,18 0,34 422-X4 432-X4 0,16 0,41 0,80 0,12 0,30 0,57 0,09 0,22 0,42 0,08 0,19 0,37 0,07 0,18 0,34 432-X4 kennametal.com B110
