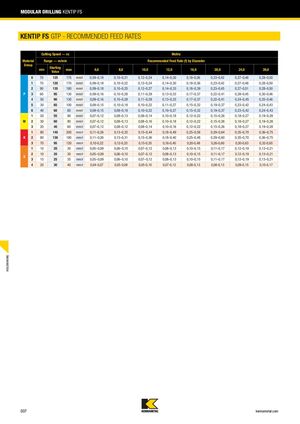

MODULAR DRILLING KENTIP FS KENTIP FS GTP - RECOMMENDED FEED RATES Cutting Speed — vc Metric Material Range — m/min Recommended Feed Rate (f) by Diameter Group Starting min max 6,0 8,0 10,0 12,0 16,0 20,0 24,0 26,0 Value 0 70 125 175 mm/r 0,09–0,18 0,10–0,21 0,12–0,24 0,14–0,30 0,18–0,36 0,23–0,42 0,27–0,48 0,28–0,50 1 70 120 170 mm/r 0,09–0,18 0,10–0,22 0,12–0,24 0,14–0,30 0,18–0,36 0,23–0,42 0,27–0,48 0,28–0,50 2 90 135 180 mm/r 0,09–0,18 0,10–0,25 0,12–0,27 0,14–0,33 0,18–0,39 0,23–0,45 0,27–0,51 0,28–0,50 P 3 60 95 130 mm/r 0,09–0,16 0,10–0,28 0,11–0,29 0,13–0,33 0,17–0,37 0,22–0,41 0,28–0,45 0,30–0,46 4 50 90 130 mm/r 0,09–0,16 0,10–0,28 0,11–0,29 0,13–0,33 0,17–0,37 0,22–0,41 0,24–0,45 0,25–0,46 5 30 65 100 mm/r 0,09–0,15 0,10–0,18 0,10–0,22 0,11–0,27 0,15–0,32 0,19–0,37 0,23–0,42 0,24–0,43 6 40 60 80 mm/r 0,09–0,15 0,09–0,18 0,10–0,22 0,10–0,27 0,15–0,32 0,19–0,37 0,23–0,42 0,24–0,43 1 20 55 90 mm/r 0,07–0,12 0,08–0,13 0,08–0,14 0,10–0,18 0,12–0,22 0,15–0,26 0,18–0,27 0,19–0,28 M 2 30 60 90 mm/r 0,07–0,12 0,08–0,13 0,08–0,16 0,10–0,18 0,12–0,22 0,15–0,26 0,18–0,27 0,19–0,28 3 20 40 60 mm/r 0,07–0,12 0,08–0,12 0,08–0,14 0,10–0,16 0,12–0,22 0,15–0,26 0,18–0,27 0,19–0,28 1 80 140 200 mm/r 0,11–0,26 0,13–0,32 0,15–0,44 0,18–0,49 0,25–0,58 0,29–0,64 0,35–0,70 0,36–0,75 K 2 80 130 180 mm/r 0,11–0,26 0,13–0,31 0,15–0,36 0,18–0,40 0,25–0,48 0,29–0,60 0,35–0,70 0,36–0,75 3 70 95 120 mm/r 0,10-0,22 0,12-0,25 0,15-0,35 0,16-0,40 0,20-0,48 0,26-0,60 0,30-0,63 0,32-0,65 1 10 20 30 mm/r 0,05–0,09 0,06–0,10 0,07–0,12 0,08–0,13 0,10–0,15 0,11–0,17 0,12–0,19 0,13–0,21 2 10 20 30 mm/r 0,05–0,09 0,06–0,10 0,07–0,12 0,08–0,13 0,10–0,15 0,11–0,17 0,12–0,19 0,13–0,21 S 3 15 25 35 mm/r 0,05–0,09 0,06–0,10 0,07–0,12 0,08–0,13 0,10–0,15 0,11–0,17 0,12–0,19 0,13–0,21 4 20 30 40 mm/r 0,04-0,07 0,05-0,09 0,05-0,10 0,07-0,12 0,08-0,13 0,08-0,13 0,09-0,15 0,10-0,17 HOLEMAKING D37 kennametal.com
