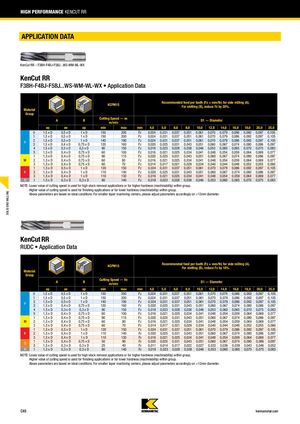

HIGH PERFORMANCE KENCUT RR APPLICATION DATA KenCut RR – F3BH-F4BJ-F5BJ...WS-WM-WL-WX KenCut RR F3BH-F4BJ-F5BJ...WS-WM-WL-WX • Application Data Recommended feed per tooth (Fz = mm/th) for side milling (A). KCPM15 For slotting (B), reduce Fz by 20%. Material Group Cutting Speed — vc A B D1 — Diameter m/min ap ae ap min max mm 4,0 5,0 6,0 8,0 10,0 12,0 14,0 16,0 18,0 20,0 25,0 0 1,5 x D 0,5 x D 1xD 150 200 Fz 0,024 0,031 0,037 0,051 0,061 0,070 0,079 0,086 0,092 0,097 0,105 1 1,5 x D 0,5 x D 1xD 150 200 Fz 0,024 0,031 0,037 0,051 0,061 0,070 0,079 0,086 0,092 0,097 0,105 2 1,5 x D 0,5 x D 1xD 140 190 Fz 0,024 0,031 0,037 0,051 0,061 0,070 0,079 0,086 0,092 0,097 0,105 P 3 1,5 x D 0,4 x D 0,75 x D 120 160 Fz 0,020 0,025 0,031 0,043 0,051 0,060 0,067 0,074 0,080 0,086 0,097 4 1,5 x D 0,3 x D 0,3 x D 90 150 Fz 0,018 0,023 0,028 0,038 0,046 0,053 0,060 0,065 0,070 0,075 0,083 5 1,5 x D 0,4 x D 0,75 x D 60 100 Fz 0,016 0,021 0,025 0,034 0,041 0,048 0,054 0,059 0,064 0,069 0,077 1 1,5 x D 0,4 x D 0,75 x D 90 115 Fz 0,020 0,025 0,031 0,043 0,051 0,060 0,067 0,074 0,080 0,086 0,097 M 2 1,5 x D 0,4 x D 0,75 x D 60 80 Fz 0,016 0,021 0,025 0,034 0,041 0,048 0,054 0,059 0,064 0,069 0,077 3 1,5 x D 0,4 x D 0,75 x D 60 70 Fz 0,014 0,017 0,021 0,029 0,034 0,040 0,044 0,048 0,052 0,055 0,060 1 1,5 x D 0,5 x D 1xD 120 150 Fz 0,024 0,031 0,037 0,051 0,061 0,070 0,079 0,086 0,092 0,097 0,105 K 2 1,5 x D 0,4 x D 1xD 110 140 Fz 0,020 0,025 0,031 0,043 0,051 0,060 0,067 0,074 0,080 0,086 0,097 3 1,5 x D 0,4 x D 1xD 110 130 Fz 0,016 0,021 0,025 0,034 0,041 0,048 0,054 0,059 0,064 0,069 0,077 H 1 1,5 x D 0,3 x D 0,3 x D 80 140 Fz 0,018 0,023 0,028 0,038 0,046 0,053 0,060 0,065 0,070 0,075 0,083 NOTE: Lower value of cutting speed is used for high stock removal applications or for higher hardness (machinability) within group. Higher value of cutting speed is used for finishing applications or for lower hardness (machinability) within group. SOLID END MILLING Above parameters are based on ideal conditions. For smaller taper machining centers, please adjust parameters accordingly on >12mm diameter. KenCut RR RUDC • Application Data Recommended feed per tooth (Fz = mm/th) for side milling (A). KCPM15 For slotting (B), reduce Fz by 10%. Material Group Cutting Speed — Vc A B D1 — Diameter m/min ap ae ap min max mm 4,0 5,0 6,0 8,0 10,0 12,0 14,0 16,0 18,0 20,0 25,0 0 1,5 x D 0,5 x D 1xD 150 200 Fz 0,024 0,031 0,037 0,051 0,061 0,070 0,079 0,086 0,092 0,097 0,105 1 1,5 x D 0,5 x D 1xD 150 200 Fz 0,024 0,031 0,037 0,051 0,061 0,070 0,079 0,086 0,092 0,097 0,105 2 1,5 x D 0,5 x D 1xD 140 190 Fz 0,024 0,031 0,037 0,051 0,061 0,070 0,079 0,086 0,092 0,097 0,105 P 3 1,5 x D 0,4 x D 0,75 x D 120 160 Fz 0,020 0,025 0,031 0,043 0,051 0,060 0,067 0,074 0,080 0,086 0,097 4 1,5 x D 0,3 x D 0,3 x D 90 150 Fz 0,018 0,023 0,028 0,038 0,046 0,053 0,060 0,065 0,070 0,075 0,083 5 1,5 x D 0,4 x D 0,75 x D 60 100 Fz 0,016 0,021 0,025 0,034 0,041 0,048 0,054 0,059 0,064 0,069 0,077 1 1,5 x D 0,4 x D 0,75 x D 90 115 Fz 0,020 0,025 0,031 0,043 0,051 0,060 0,067 0,074 0,080 0,086 0,097 M 2 1,5 x D 0,4 x D 0,75 x D 60 80 Fz 0,016 0,021 0,025 0,034 0,041 0,048 0,054 0,059 0,064 0,069 0,077 3 1,5 x D 0,4 x D 0,75 x D 60 70 Fz 0,014 0,017 0,021 0,029 0,034 0,040 0,044 0,048 0,052 0,055 0,060 1 1,5 x D 0,5 x D 1xD 120 150 Fz 0,024 0,031 0,037 0,051 0,061 0,070 0,079 0,086 0,092 0,097 0,105 K 2 1,5 x D 0,4 x D 1xD 110 140 Fz 0,020 0,025 0,031 0,043 0,051 0,060 0,067 0,074 0,080 0,086 0,097 3 1,5 x D 0,4 x D 1xD 110 130 Fz 0,016 0,021 0,025 0,034 0,041 0,048 0,054 0,059 0,064 0,069 0,077 1 1,5 x D 0,4 x D 0,75 x D 50 90 Fz 0,020 0,025 0,031 0,043 0,051 0,060 0,067 0,074 0,080 0,086 0,097 S 3 1,5 x D 0,3 x D 0,3 x D 25 40 Fz 0,011 0,014 0,017 0,022 0,027 0,032 0,036 0,039 0,043 0,046 0,052 H 1 1,5 x D 0,3 x D 0,3 x D 80 140 Fz 0,018 0,023 0,028 0,038 0,046 0,053 0,060 0,065 0,070 0,075 0,083 NOTE: Lower value of cutting speed is used for high stock removal applications or for higher hardness (machinability) within group. Higher value of cutting speed is used for finishing applications or for lower hardness (machinability) within group. Above parameters are based on ideal conditions. For smaller taper machining centers, please adjust parameters accordingly on >12mm diameter. C45 kennametal.com
