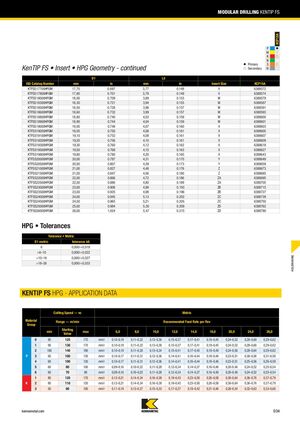

MODULAR DRILLING KENTIP FS KCP15A P 䢇 M 嘷 K 嘷 N 䢇 Primary S 嘷 KenTIP FS • Insert • HPG Geometry - continued 嘷 Secondary H D1 L5 ISO Catalog Number mm in mm in Insert Size KCP15A KTFSS17700HPGM 17,70 0.697 3,77 0.148 V 6388572 KTFSS17800HPGM 17,80 0.701 3,79 0.149 V 6388574 KTFSS18000HPGM 18,00 0.709 3,89 0.153 W 6388579 KTFSS18300HPGM 18,30 0.721 3,94 0.155 W 6388587 KTFSS18500HPGM 18,50 0.728 3,98 0.157 W 6388591 KTFSS18600HPGM 18,60 0.732 3,99 0.157 W 6388593 KTFSS18800HPGM 18,80 0.740 4,03 0.159 W 6388600 KTFSS18900HPGM 18,90 0.744 4,04 0.159 W 6388601 KTFSS19000HPGM 19,00 0.748 4,07 0.160 X 6388603 KTFSS19050HPGM 19,05 0.750 4,08 0.161 X 6388605 KTFSS19100HPGM 19,10 0.752 4,09 0.161 X 6388607 KTFSS19200HPGM 19,20 0.756 4,10 0.161 X 6388609 KTFSS19300HPGM 19,30 0.760 4,12 0.162 X 6388618 KTFSS19500HPGM 19,50 0.768 4,15 0.163 X 6388627 KTFSS19800HPGM 19,80 0.780 4,20 0.165 X 6388643 KTFSS20000HPGM 20,00 0.787 4,31 0.170 Y 6388649 KTFSS20500HPGM 20,50 0.807 4,39 0.173 Y 6388659 KTFSS21000HPGM 21,00 0.827 4,48 0.176 Z 6388673 KTFSS21500HPGM 21,50 0.847 4,56 0.180 Z 6388685 KTFSS22000HPGM 22,00 0.866 4,72 0.186 ZA 6388695 KTFSS22500HPGM 22,50 0.886 4,80 0.189 ZA 6388705 KTFSS23000HPGM 23,00 0.906 4,89 0.193 ZB 6388715 KTFSS23500HPGM 23,50 0.925 4,98 0.196 ZB 6388727 KTFSS24000HPGM 24,00 0.945 5,13 0.202 ZC 6388739 KTFSS24500HPGM 24,50 0.965 5,21 0.205 ZC 6388750 KTFSS25000HPGM 25,00 0.984 5,30 0.209 ZD 6388762 KTFSS26000HPGM 26,00 1.024 5,47 0.215 ZD 6388790 HPG • Tolerances Tolerance • Metric D1 metric tolerance k8 6 0,000/+0,018 >6–10 0,000/+0,022 HOLEMAKING >10–18 0,000/+0,027 >18–26 0,000/+0,033 KENTIP FS HPG - APPLICATION DATA Cutting Speed — vc Metric Material Range — m/min Recommended Feed Rate per Rev Group Starting min max 6,0 8,0 10,0 12,0 14,0 16,0 20,0 24,0 26,0 Value 0 95 125 175 mm/r 0,10–0,19 0,11–0,22 0,13–0,30 0,15–0,37 0,17–0,41 0,19–0,45 0,24–0,52 0,28–0,60 0,29–0,62 1 90 130 170 mm/r 0,10–0,19 0,11–0,22 0,13–0,30 0,15–0,37 0,17–0,41 0,19–0,45 0,24–0,52 0,28–0,60 0,29–0,62 2 100 140 180 mm/r 0,10–0,19 0,11–0,26 0,13–0,34 0,15–0,41 0,17–0,45 0,19–0,49 0,24–0,56 0,28–0,64 0,29–0,62 P 3 60 100 130 mm/r 0,10–0,17 0,11–0,31 0,12–0,36 0,14–0,41 0,16–0,44 0,18–0,46 0,23–0,51 0,30–0,56 0,31–0,58 4 60 100 130 mm/r 0,10–0,17 0,11–0,31 0,12–0,36 0,14–0,41 0,16–0,44 0,18–0,46 0,23–0,51 0,25–0,56 0,26–0,58 5 60 80 100 mm/r 0,09–0,16 0,10–0,22 0,11–0,28 0,12–0,34 0,14–0,37 0,16–0,40 0,20–0,46 0,24–0,52 0,25–0,54 6 60 70 80 mm/r 0,09–0,16 0,10–0,22 0,11–0,28 0,12–0,34 0,14–0,37 0,16–0,40 0,20–0,46 0,24–0,52 0,25–0,54 1 80 120 170 mm/r 0,12–0,21 0,14–0,34 0,16–0,39 0,19–0,45 0,23–0,50 0,26–0,58 0,30–0,64 0,36–0,76 0,37–0,79 K 2 80 110 120 mm/r 0,12–0,21 0,14–0,34 0,16–0,39 0,19–0,45 0,23–0,50 0,26–0,58 0,30–0,64 0,36–0,76 0,37–0,79 3 50 80 100 mm/r 0,11–0,19 0,13–0,27 0,15–0,33 0,17–0,37 0,19–0,42 0,21–0,46 0,28–0,54 0,32–0,63 0,33–0,66 kennametal.com D34
