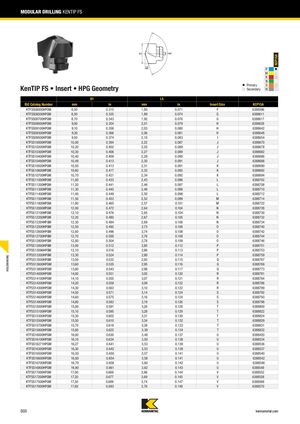

MODULAR DRILLING KENTIP FS KCP15A P 䢇 M 嘷 K 嘷 N 䢇 Primary S 嘷 KenTIP FS • Insert • HPG Geometry 嘷 Secondary H D1 L5 ISO Catalog Number mm in mm in Insert Size KCP15A KTFSS08000HPGM 8,00 0.315 1,80 0.071 F 6388596 KTFSS08500HPGM 8,50 0.335 1,89 0.074 G 6388611 KTFSS08700HPGM 8,70 0.343 1,92 0.076 G 6388617 KTFSS09000HPGM 9,00 0.354 2,01 0.079 H 6388628 KTFSS09100HPGM 9,10 0.358 2,03 0.080 H 6388642 KTFSS09300HPGM 9,30 0.366 2,06 0.081 H 6388648 KTFSS09500HPGM 9,50 0.374 2,10 0.083 I 6388654 KTFSS10000HPGM 10,00 0.394 2,22 0.087 J 6388670 KTFSS10200HPGM 10,20 0.402 2,25 0.089 J 6388678 KTFSS10300HPGM 10,30 0.406 2,27 0.089 J 6388682 KTFSS10400HPGM 10,40 0.409 2,29 0.090 J 6388686 KTFSS10490HPGM 10,49 0.413 2,30 0.091 J 6388688 KTFSS10500HPGM 10,50 0.413 2,31 0.091 K 6388690 KTFSS10600HPGM 10,60 0.417 2,33 0.092 K 6388692 KTFSS10700HPGM 10,70 0.421 2,34 0.092 K 6388694 KTFSS11000HPGM 11,00 0.433 2,43 0.096 L 6388702 KTFSS11200HPGM 11,20 0.441 2,46 0.097 L 6388708 KTFSS11300HPGM 11,30 0.445 2,48 0.098 L 6388710 KTFSS11400HPGM 11,40 0.449 2,50 0.098 L 6388712 KTFSS11500HPGM 11,50 0.453 2,52 0.099 M 6388714 KTFSS11800HPGM 11,80 0.465 2,57 0.101 M 6388722 KTFSS12000HPGM 12,00 0.472 2,64 0.104 N 6388728 KTFSS12100HPGM 12,10 0.476 2,65 0.104 N 6388730 KTFSS12200HPGM 12,20 0.480 2,67 0.105 N 6388732 KTFSS12304HPGM 12,30 0.484 2,69 0.106 N 6388734 KTFSS12500HPGM 12,50 0.492 2,73 0.108 O 6388740 KTFSS12600HPGM 12,60 0.496 2,74 0.108 O 6388742 KTFSS12700HPGM 12,70 0.500 2,76 0.109 O 6388744 KTFSS12800HPGM 12,80 0.504 2,78 0.109 O 6388746 KTFSS13000HPGM 13,00 0.512 2,85 0.112 P 6388751 KTFSS13096HPGM 13,10 0.516 2,86 0.113 P 6388753 KTFSS13300HPGM 13,30 0.524 2,90 0.114 P 6388759 HOLEMAKING KTFSS13500HPGM 13,50 0.532 2,93 0.115 Q 6388767 KTFSS13600HPGM 13,60 0.535 2,95 0.116 Q 6388769 KTFSS13800HPGM 13,80 0.543 2,98 0.117 Q 6388773 KTFSS14000HPGM 14,00 0.551 3,05 0.120 R 6388781 KTFSS14100HPGM 14,10 0.555 3,07 0.121 R 6388784 KTFSS14200HPGM 14,20 0.559 3,09 0.122 R 6388786 KTFSS14300HPGM 14,30 0.563 3,10 0.122 R 6388789 KTFSS14500HPGM 14,50 0.571 3,14 0.124 S 6388792 KTFSS14600HPGM 14,60 0.575 3,16 0.124 S 6388793 KTFSS14800HPGM 14,80 0.583 3,19 0.126 S 6388798 KTFSS15000HPGM 15,00 0.591 3,26 0.128 T 6388800 KTFSS15100HPGM 15,10 0.595 3,28 0.129 T 6388822 KTFSS15300HPGM 15,30 0.602 3,31 0.130 T 6388824 KTFSS15500HPGM 15,50 0.610 3,34 0.132 T 6388829 KTFSS15700HPGM 15,70 0.618 3,38 0.133 T 6388831 KTFSS15800HPGM 15,80 0.622 3,39 0.134 T 6388832 KTFSS16000HPGM 16,00 0.630 3,48 0.137 U 6388420 KTFSS16100HPGM 16,10 0.634 3,50 0.138 U 6388534 KTFSS16271HPGM 16,27 0.641 3,53 0.139 U 6388536 KTFSS16300HPGM 16,30 0.642 3,53 0.139 U 6388537 KTFSS16500HPGM 16,50 0.650 3,57 0.141 U 6388540 KTFSS16600HPGM 16,60 0.654 3,58 0.141 U 6388542 KTFSS16700HPGM 16,70 0.658 3,60 0.142 U 6388546 KTFSS16800HPGM 16,80 0.661 3,62 0.143 U 6388548 KTFSS17000HPGM 17,00 0.669 3,66 0.144 V 6388552 KTFSS17200HPGM 17,20 0.677 3,69 0.145 V 6388558 KTFSS17500HPGM 17,50 0.689 3,74 0.147 V 6388568 KTFSS17600HPGM 17,60 0.693 3,76 0.148 V 6388570 D33 kennametal.com
