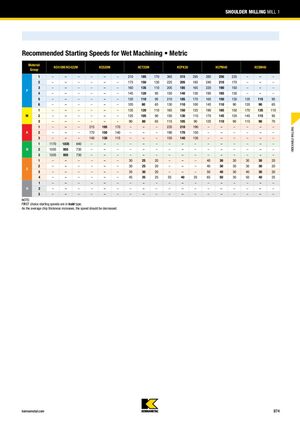

Рекомендуемые начальные скорости резания при мокром фрезеровании • Метрическая система
| Группа материала | KC410M/KC422M | KC520M | KC725M | KCPK30 | KCPM40 | KCSM40 | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| P 1 | – | – | – | – | – | – | 210 | 185 | 170 | 365 | 315 | 295 | 285 | 250 | 235 | – | – | – |
| P 2 | – | – | – | – | – | – | 175 | 150 | 130 | 225 | 205 | 185 | 240 | 210 | 170 | – | – | – |
| P 3 | – | – | – | – | – | – | 160 | 135 | 110 | 205 | 185 | 165 | 220 | 190 | 150 | – | – | – |
| P 4 | – | – | – | – | – | – | 145 | 120 | 95 | 150 | 140 | 130 | 195 | 165 | 130 | – | – | – |
| P 5 | – | – | – | – | – | – | 120 | 110 | 95 | 210 | 185 | 170 | 165 | 150 | 130 | 135 | 115 | 95 |
| P 6 | – | – | – | – | – | – | 105 | 80 | 65 | 130 | 110 | 100 | 145 | 110 | 90 | 120 | 90 | 65 |
| M 1 | – | – | – | – | – | – | 135 | 120 | 110 | 165 | 150 | 125 | 190 | 165 | 150 | 170 | 135 | 110 |
| M 2 | – | – | – | – | – | – | 125 | 105 | 90 | 150 | 130 | 110 | 170 | 145 | 120 | 145 | 115 | 95 |
| M 3 | – | – | – | – | – | – | 90 | 80 | 65 | 115 | 105 | 90 | 125 | 110 | 90 | 115 | 90 | 70 |
| K 1 | – | – | – | 215 | 195 | 170 | – | – | – | 235 | 210 | 190 | – | – | – | – | – | – |
| K 2 | – | – | – | 170 | 150 | 140 | – | – | – | 190 | 170 | 150 | – | – | – | – | – | – |
| K 3 | – | – | – | 140 | 130 | 115 | – | – | – | 155 | 140 | 130 | – | – | – | – | – | – |
| N 1 | 1170 | 1035 | 840 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| N 2 | 1035 | 955 | 730 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| N 3 | 1035 | 955 | 730 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| S 1 | – | – | – | – | – | – | 30 | 25 | 20 | – | – | – | 40 | 30 | 30 | 30 | 30 | 20 |
| S 2 | – | – | – | – | – | – | 30 | 25 | 20 | – | – | – | 40 | 30 | 30 | 30 | 30 | 20 |
| S 3 | – | – | – | – | – | – | 35 | 30 | 20 | – | – | – | 50 | 40 | 30 | 40 | 30 | 20 |
| S 4 | – | – | – | – | – | – | 45 | 35 | 25 | 55 | 40 | 25 | 65 | 50 | 30 | 50 | 40 | 25 |
| H 1 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| H 2 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| H 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
Примечание: Наилучшие рекомендуемые скорости выделены жирным типом. По мере увеличения средней толщины стружки скорость должна быть снижена.
