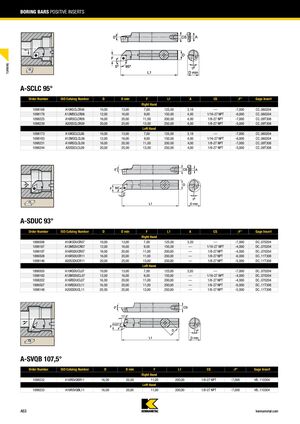

Расточные резцы с положительными пластинами
A-SCLC 95°
| Номер заказа | ISO Каталожный номер | D | D мин | F | L1 | A | CS | JF° | Калибровочная пластина |
|---|---|---|---|---|---|---|---|---|---|
| Правая рука | |||||||||
| 1098168 | A10KSCLCR06 | 10,00 | 13,00 | 7,00 | 125,00 | 3,18 | — | -7,000 | CC..060204 |
| 1098178 | A12MSCLCR06 | 12,00 | 16,00 | 9,00 | 150,00 | 4,00 | 1/16-27 NPT | -6,000 | CC..060204 |
| 1098225 | A16RSCLCR09 | 16,00 | 20,00 | 11,00 | 200,00 | 4,00 | 1/8-27 NPT | -7,000 | CC..09T308 |
| 1098239 | A20SSCLCR09 | 20,00 | 25,00 | 13,00 | 250,00 | 4,00 | 1/8-27 NPT | -5,000 | CC..09T308 |
| Левая рука | |||||||||
| 1098173 | A10KSCLCL06 | 10,00 | 13,00 | 7,00 | 125,00 | 3,18 | — | -7,000 | CC..060204 |
| 1098183 | A12MSCLCL06 | 12,00 | 16,00 | 9,00 | 150,00 | 4,00 | 1/16-27 NPT | -6,000 | CC..060204 |
| 1098231 | A16RSCLCL09 | 16,00 | 20,00 | 11,00 | 200,00 | 4,00 | 1/8-27 NPT | -7,000 | CC..09T308 |
| 1098244 | A20SSCLCL09 | 20,00 | 25,00 | 13,00 | 250,00 | 4,00 | 1/8-27 NPT | -5,000 | CC..09T308 |
A-SDUC 93°
| Номер заказа | ISO Каталожный номер | D | D мин | F | L1 | A | CS | JF° | Калибровочная пластина |
|---|---|---|---|---|---|---|---|---|---|
| Правая рука | |||||||||
| 1886506 | A10KSDUCR07 | 10,00 | 13,00 | 7,00 | 125,00 | 3,20 | — | -7,000 | DC..070204 |
| 1098187 | A12MSDUCR07 | 12,00 | 16,00 | 9,00 | 150,00 | — | 1/16-27 NPT | -4,000 | DC..070204 |
| 1098197 | A16RSDUCR07 | 16,00 | 20,00 | 11,00 | 200,00 | — | 1/8-27 NPT | -4,000 | DC..070204 |
| 1886508 | A16RSDUCR11 | 16,00 | 20,00 | 11,00 | 200,00 | — | 1/8-27 NPT | -6,000 | DC..11T308 |
| 1098146 | A20SSDUCR11 | 20,00 | 25,00 | 13,00 | 250,00 | — | 1/8-27 NPT | -5,000 | DC..11T308 |
| Левая рука | |||||||||
| 1886505 | A10KSDUCL07 | 10,00 | 13,00 | 7,00 | 125,00 | 3,20 | — | -7,000 | DC..070204 |
| 1098192 | A12MSDUCL07 | 12,00 | 16,00 | 9,00 | 150,00 | — | 1/16-27 NPT | -4,000 | DC..070204 |
| 1098202 | A16RSDUCL07 | 16,00 | 20,00 | 11,00 | 200,00 | — | 1/8-27 NPT | -4,000 | DC..070204 |
| 1886507 | A16RSDUCL11 | 16,00 | 20,00 | 11,00 | 200,00 | — | 1/8-27 NPT | -6,000 | DC..11T308 |
| 1098148 | A20SSDUCL11 | 20,00 | 25,00 | 13,00 | 250,00 | — | 1/8-27 NPT | -5,000 | DC..11T308 |
A-SVQB 107,5°
| Номер заказа | ISO Каталожный номер | D | D мин | F | L1 | CS | JF° | Калибровочная пластина |
|---|---|---|---|---|---|---|---|---|
| Правая рука | ||||||||
| 1098232 | A16RSVQBR11 | 16,00 | 20,00 | 11,00 | 200,00 | 1/8-27 NPT | -7,000 | VB..110304 |
| Левая рука | ||||||||
| 1098233 | A16RSVQBL11 | 16,00 | 20,00 | 11,00 | 200,00 | 1/8-27 NPT | -7,000 | VB..110304 |
