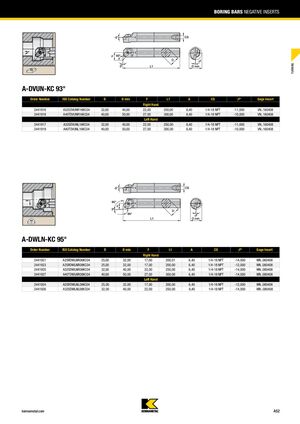

Расточные резцы с отрицательными пластинами
A-DVUN-KC 93°
| Номер заказа | ISO Каталожный номер | D | D мин | F | L1 | A | CS | JF° | Калибровочная пластина |
|---|---|---|---|---|---|---|---|---|---|
| Правая рука | |||||||||
| 2441916 | A32SDVUNR16KC04 | 32,00 | 40,00 | 22,00 | 250,00 | 6,40 | 1/4-18 NPT | -11,000 | VN..160408 |
| 2441918 | A40TDVUNR16KC04 | 40,00 | 50,00 | 27,00 | 300,00 | 6,40 | 1/4-18 NPT | -10,000 | VN..160408 |
| Левая рука | |||||||||
| 2441917 | A32SDVUNL16KC04 | 32,00 | 40,00 | 22,00 | 250,00 | 6,40 | 1/4-18 NPT | -11,000 | VN..160408 |
| 2441919 | A40TDVUNL16KC04 | 40,00 | 50,00 | 27,00 | 300,00 | 6,40 | 1/4-18 NPT | -10,000 | VN..160408 |
A-DWLN-KC 95°
| Номер заказа | ISO Каталожный номер | D | D мин | F | L1 | A | CS | JF° | Калибровочная пластина |
|---|---|---|---|---|---|---|---|---|---|
| Правая рука | |||||||||
| 2441921 | A25RDWLNR06KC04 | 25,00 | 32,00 | 17,00 | 200,01 | 6,40 | 1/4-18 NPT | -14,000 | WN..060408 |
| 2441923 | A25RDWLNR08KC04 | 25,00 | 32,00 | 17,00 | 200,00 | 6,40 | 1/4-18 NPT | -12,000 | WN..080408 |
| 2441925 | A32SDWLNR08KC04 | 32,00 | 40,00 | 22,00 | 250,00 | 6,40 | 1/4-18 NPT | -14,000 | WN..080408 |
| 2441927 | A40TDWLNR08KC04 | 40,00 | 50,00 | 27,00 | 300,00 | 6,40 | 1/4-18 NPT | -14,000 | WN..080408 |
| Левая рука | |||||||||
| 2441924 | A25RDWLNL08KC04 | 25,00 | 32,00 | 17,00 | 200,00 | 6,40 | 1/4-18 NPT | -12,000 | WN..080408 |
| 2441926 | A32SDWLNL08KC04 | 32,00 | 40,00 | 22,00 | 250,00 | 6,40 | 1/4-18 NPT | -14,000 | WN..080408 |
