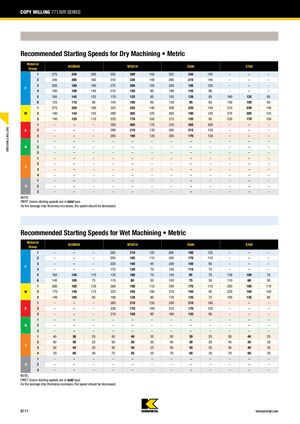

ФРЕЗЕРОВАНИЕ КОПИРОВАНИЕМ, СЕРИЯ 7713VR
Рекомендуемые скорости резания при сухой обработке • Метрическая система
| Группа материалов | KCSM40 | SP6519 | X500 | X700 | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| P | 1 | 275 | 240 | 205 | 355 | 260 | 155 | 325 | 240 | 155 | – | – | – |
| 2 | 240 | 205 | 160 | 310 | 230 | 140 | 290 | 215 | 140 | – | – | – | |
| 3 | 205 | 180 | 160 | 275 | 200 | 120 | 250 | 185 | 120 | – | – | – | |
| 4 | 180 | 160 | 145 | 210 | 150 | 90 | 190 | 145 | 90 | – | – | – | |
| 5 | 160 | 145 | 125 | 170 | 125 | 85 | 155 | 120 | 85 | 160 | 125 | 85 | |
| 6 | 125 | 110 | 90 | 145 | 100 | 60 | 130 | 95 | 60 | 140 | 100 | 60 | |
| M | 1 | 275 | 220 | 180 | 325 | 235 | 140 | 300 | 220 | 140 | 310 | 230 | 140 |
| 2 | 180 | 145 | 125 | 280 | 205 | 125 | 265 | 190 | 120 | 275 | 205 | 125 | |
| 3 | 145 | 125 | 110 | 235 | 170 | 100 | 215 | 155 | 95 | 230 | 170 | 100 | |
| K | 1 | – | – | – | 355 | 265 | 170 | 310 | 265 | 205 | – | – | – |
| 2 | – | – | – | 290 | 210 | 130 | 265 | 215 | 155 | – | – | – | |
| 3 | – | – | – | 265 | 190 | 120 | 205 | 170 | 120 | – | – | – | |
| N | 1 | – | – | – | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | |
| S | 1 | – | – | – | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | |
| 4 | – | – | – | – | – | – | – | – | – | – | – | – | |
| H | 1 | – | – | – | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | |
Примечание: Рекомендуемые начальные скорости выделены жирным шрифтом. При увеличении средней толщины стружки скорость следует снижать.
Рекомендуемые скорости резания при влажной обработке • Метрическая система
| Группа материалов | KCSM40 | SP6519 | X500 | X700 | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| P | 1 | – | – | – | 285 | 210 | 125 | 260 | 190 | 125 | – | – | – |
| 2 | – | – | – | 250 | 185 | 110 | 230 | 170 | 110 | – | – | – | |
| 3 | – | – | – | 220 | 160 | 95 | 200 | 150 | 95 | – | – | – | |
| 4 | – | – | – | 170 | 120 | 70 | 150 | 115 | 70 | – | – | – | |
| 5 | 165 | 140 | 115 | 135 | 100 | 70 | 125 | 95 | 70 | 130 | 100 | 70 | |
| 6 | 145 | 105 | 75 | 115 | 80 | 50 | 105 | 75 | 50 | 110 | 80 | 50 | |
| M | 1 | 200 | 165 | 135 | 260 | 190 | 110 | 240 | 175 | 110 | 250 | 185 | 110 |
| 2 | 170 | 140 | 115 | 225 | 165 | 100 | 210 | 150 | 95 | 220 | 165 | 100 | |
| 3 | 140 | 105 | 80 | 190 | 135 | 80 | 170 | 125 | 75 | 185 | 135 | 80 | |
| K | 1 | – | – | – | 285 | 210 | 135 | 250 | 210 | 165 | – | – | – |
| 2 | – | – | – | 230 | 170 | 105 | 210 | 170 | 125 | – | – | – | |
| 3 | – | – | – | 210 | 150 | 95 | 165 | 135 | 95 | – | – | – | |
| N | 1 | – | – | – | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | |
| S | 1 | 40 | 30 | 25 | 50 | 40 | 25 | 50 | 30 | 25 | 50 | 40 | 25 |
| 2 | 40 | 30 | 25 | 50 | 30 | 20 | 45 | 30 | 20 | 45 | 30 | 20 | |
| 3 | 50 | 40 | 25 | 50 | 40 | 25 | 50 | 40 | 25 | 50 | 40 | 25 | |
| 4 | 55 | 50 | 30 | 75 | 55 | 35 | 70 | 50 | 30 | 70 | 50 | 35 | |
| H | 1 | – | – | – | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | |
Примечание: Рекомендуемые начальные скорости выделены жирным шрифтом. При увеличении средней толщины стружки скорость следует снижать.
