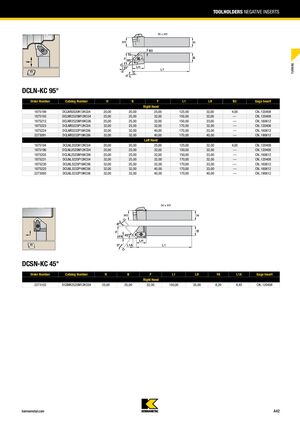

Державки резцов с отрицательными пластинами
DCLN-KC 95°
| Номер заказа | Каталожный номер | H | B | F | L1 | LH | B3 | Калибровочная пластина |
|---|---|---|---|---|---|---|---|---|
| Правая рука | ||||||||
| 1875199 | DCLNR2020K12KC04 | 20,00 | 20,00 | 25,00 | 125,00 | 32,00 | 4,00 | CN..120408 |
| 1875193 | DCLNR2525M12KC04 | 25,00 | 25,00 | 32,00 | 150,00 | 32,00 | — | CN..120408 |
| 1875212 | DCLNR2525M16KC06 | 25,00 | 25,00 | 32,00 | 150,00 | 33,00 | — | CN..160612 |
| 1875223 | DCLNR3225P12KC04 | 32,00 | 25,00 | 32,00 | 170,00 | 32,00 | — | CN..120408 |
| 1875224 | DCLNR3232P16KC06 | 32,00 | 32,00 | 40,00 | 170,00 | 33,00 | — | CN..160612 |
| 2273091 | DCLNR3232P19KC06 | 32,00 | 32,00 | 40,00 | 170,00 | 40,00 | — | CN..190612 |
| Левая рука | ||||||||
| 1875194 | DCLNL2020K12KC04 | 20,00 | 20,00 | 25,00 | 125,00 | 32,00 | 4,00 | CN..120408 |
| 1875196 | DCLNL2525M12KC04 | 25,00 | 25,00 | 32,00 | 150,00 | 32,00 | — | CN..120408 |
| 1875205 | DCLNL2525M16KC06 | 25,00 | 25,00 | 32,00 | 150,00 | 33,00 | — | CN..160612 |
| 1875231 | DCLNL3225P12KC04 | 32,00 | 25,00 | 32,00 | 170,00 | 32,00 | — | CN..120408 |
| 1875230 | DCLNL3225P16KC06 | 32,00 | 25,00 | 32,00 | 170,00 | 33,00 | — | CN..160612 |
| 1875225 | DCLNL3232P16KC06 | 32,00 | 32,00 | 40,00 | 170,00 | 33,00 | — | CN..160612 |
| 2273093 | DCLNL3232P19KC06 | 32,00 | 32,00 | 40,00 | 170,00 | 40,00 | — | CN..190612 |
DCSN-KC 45°
| Номер заказа | Каталожный номер | H | B | F | L1 | LH | FA | L1A | Калибровочная пластина |
|---|---|---|---|---|---|---|---|---|---|
| Правая рука | |||||||||
| 2273102 | DCSNR2525M12KC04 | 25,00 | 25,00 | 32,00 | 150,00 | 35,00 | 8,20 | 8,45 | CN..120408 |
