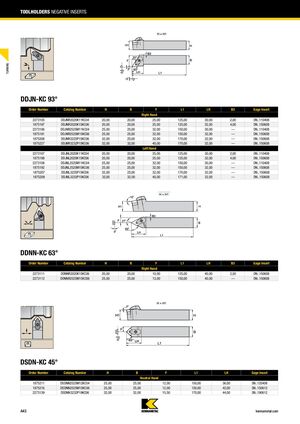

Державки резцов с отрицательными пластинами
DDJN-KC 93°
| Номер заказа | Каталожный номер | H | B | F | L1 | LH | B3 | Калибровочная пластина |
|---|---|---|---|---|---|---|---|---|
| Правая рука | ||||||||
| 2273105 | DDJNR2020K11KC04 | 20,00 | 20,00 | 25,00 | 125,00 | 30,00 | 2,00 | DN..110408 |
| 1875197 | DDJNR2020K15KC06 | 20,00 | 20,00 | 25,00 | 125,00 | 32,00 | 4,00 | DN..150608 |
| 2273106 | DDJNR2525M11KC04 | 25,00 | 25,00 | 32,00 | 150,00 | 30,00 | — | DN..110408 |
| 1875191 | DDJNR2525M15KC06 | 25,00 | 25,00 | 32,00 | 150,00 | 32,00 | — | DN..150608 |
| 1875208 | DDJNR3225P15KC06 | 32,00 | 25,00 | 32,00 | 170,00 | 32,00 | — | DN..150608 |
| 1875227 | DDJNR3232P15KC06 | 32,00 | 32,00 | 40,00 | 170,00 | 32,00 | — | DN..150608 |
| Левая рука | ||||||||
| 2273107 | DDJNL2020K11KC04 | 20,00 | 20,00 | 25,00 | 125,00 | 30,00 | 2,00 | DN..110408 |
| 1875198 | DDJNL2020K15KC06 | 20,00 | 20,00 | 25,00 | 125,00 | 32,00 | 4,00 | DN..150608 |
| 2273108 | DDJNL2525M11KC04 | 25,00 | 25,00 | 32,00 | 150,00 | 30,00 | — | DN..110408 |
| 1875192 | DDJNL2525M15KC06 | 25,00 | 25,00 | 32,00 | 150,00 | 32,00 | — | DN..150608 |
| 1875207 | DDJNL3225P15KC06 | 32,00 | 25,00 | 32,00 | 170,00 | 32,00 | — | DN..150608 |
| 1875209 | DDJNL3232P15KC06 | 32,00 | 32,00 | 40,00 | 171,00 | 32,00 | — | DN..150608 |
DDNN-KC 63°
| Номер заказа | Каталожный номер | H | B | F | L1 | LH | B3 | Калибровочная пластина |
|---|---|---|---|---|---|---|---|---|
| Правая рука | ||||||||
| 2273111 | DDNNR2020K15KC06 | 20,00 | 20,00 | 10,00 | 125,00 | 40,00 | 2,50 | DN..150608 |
| 2273112 | DDNNR2525M15KC06 | 25,00 | 25,00 | 13,00 | 150,00 | 40,00 | — | DN..150608 |
DSDN-KC 45°
| Номер заказа | Каталожный номер | H | B | F | L1 | LH | Калибровочная пластина |
|---|---|---|---|---|---|---|---|
| Нейтральная рука | |||||||
| 1875211 | DSDNN2525M12KC04 | 25,00 | 25,00 | 12,00 | 150,00 | 36,00 | SN..120408 |
| 1875216 | DSDNN2525M15KC06 | 25,00 | 25,00 | 12,00 | 150,00 | 42,00 | SN..150612 |
| 2273139 | DSDNN3232P19KC06 | 32,00 | 32,00 | 15,50 | 170,00 | 44,00 | SN..190612 |
